Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Disconnect and isolate the negative battery cable.
  2. Remove the engine oil pump. Refer to PUMP, ENGINE OIL, REMOVAL AND INSTALLATION .

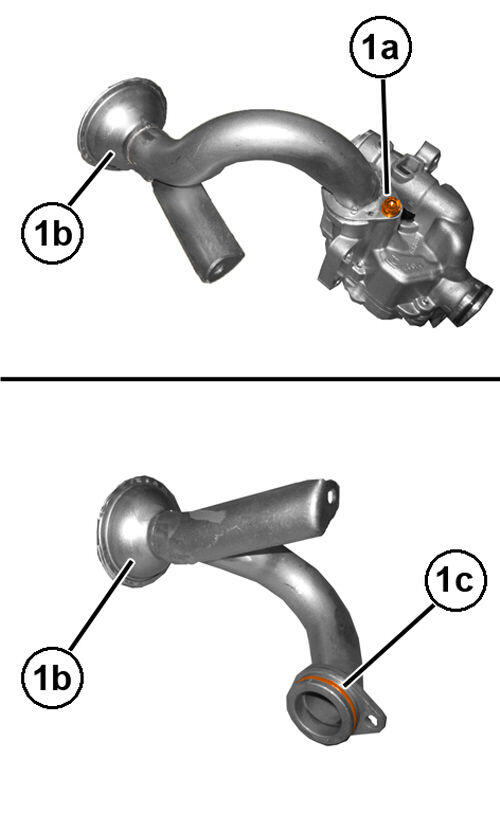

    GC0198498Courtesy of CHRYSLER GROUP, LLC
  3. Remove the bolt (1a) and the oil pump pick up (1b) complete with O-ring (1c).

INSTALLATION

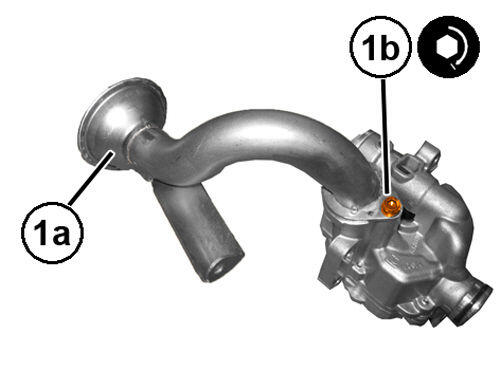

GC0197489Courtesy of CHRYSLER GROUP, LLC
  1. Using a NEW  O-ring, install the oil pump pick up (1a) and tighten the bolt (1b) to the proper specification. Refer to LUBRICATION  .
  2. Install the engine oil pump. Refer to PUMP, ENGINE OIL, REMOVAL AND INSTALLATION .
  3. Connect the negative battery cable.
