Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Disconnect and isolate the negative battery cable.
  2. Remove the engine oil filter. Refer to FILTER, ENGINE OIL, REMOVAL AND INSTALLATION .
  3. Remove the transmission cooler coolant tube. Refer to TUBES AND HOSES, TRANSMISSION OIL COOLER, REMOVAL AND INSTALLATION .

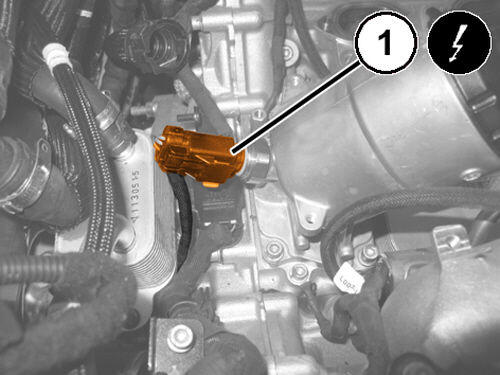

    GC0197447Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the engine oil pressure sensor wire harness connector (1).

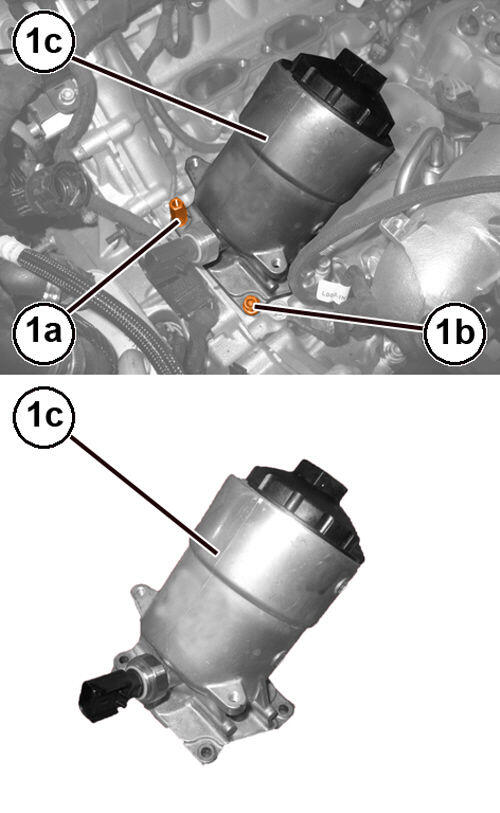

    GC0194947Courtesy of CHRYSLER GROUP, LLC
  5. Remove the bolt (1a) and (1b) and the engine oil filter housing (1c).

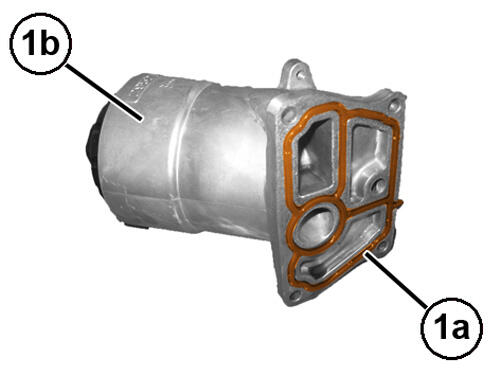

    GC0207789Courtesy of CHRYSLER GROUP, LLC
  6. Remove the seal (1a) from the engine oil filter housing (1b).

INSTALLATION

  1. Install a NEW  seal on the engine oil filter housing.

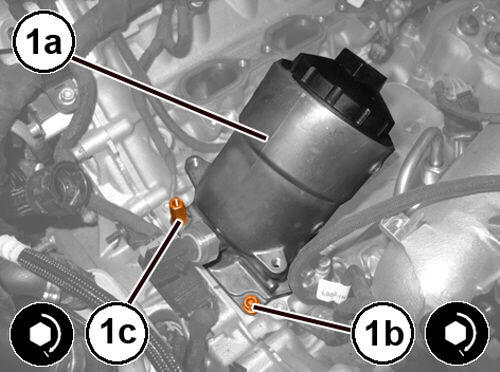

    GC0194951Courtesy of CHRYSLER GROUP, LLC
  2. Install the oil filter housing (1a) and tighten the bolt (1b) and (1c) to the proper specification. Refer to LUBRICATION  .
  3. Connect the engine oil pressure sensor wire harness connector.
  4. Install the transmission cooler coolant tube. Refer to TUBES AND HOSES, TRANSMISSION OIL COOLER, REMOVAL AND INSTALLATION .
  5. Install the engine oil filter. Refer to FILTER, ENGINE OIL, REMOVAL AND INSTALLATION .
  6. Connect the negative battery cable.
