Left Side

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the front intake air tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

3. Remove the bolts (1a) the band (1b), and the air inlet pipe (1c) complete with O-ring (1d).
4. Remove the left side high pressure fuel line. Refer to LINES, FUEL, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

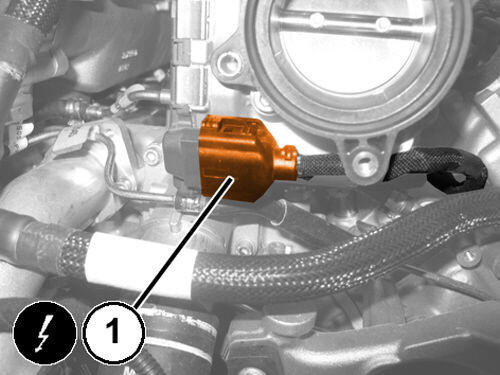

5. Disconnect the throttle body actuator wire harness connector (1).

   Courtesy of CHRYSLER GROUP, LLC

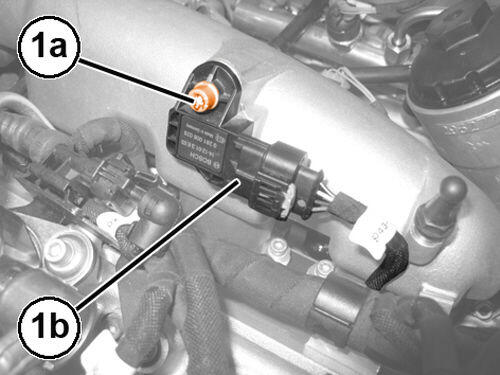

6. Remove the bolt (1a) and the air temperature/pressure sensor (1b) and position aside.

   Courtesy of CHRYSLER GROUP, LLC

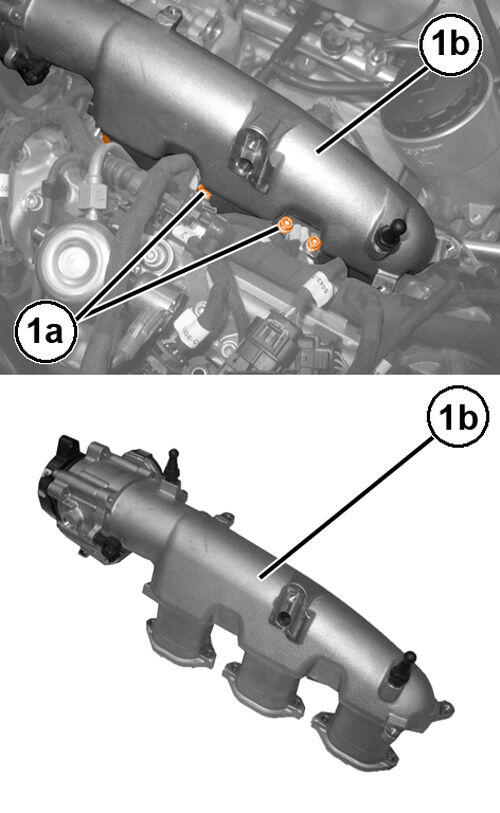

7. Remove the bolts (1a) and the left intake manifold (1b).
8. Remove the gasket.

   Courtesy of CHRYSLER GROUP, LLC

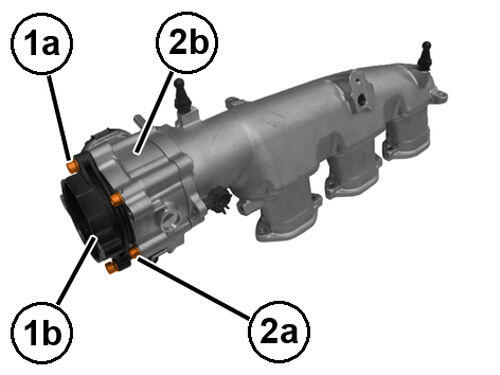

9. If necessary, remove the bolts (1a) and spacer (1b).
10. If necessary, remove the bolts (2a) and the throttle body (2b).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

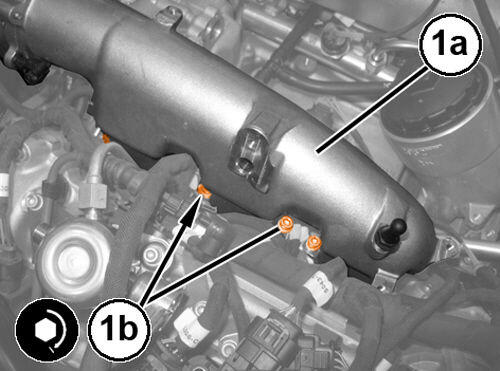

1. Using a NEW  gasket, install the left intake manifold (1a) onto the locating pins and tighten the bolts (1b) to the proper specification. Refer to TORQUE SPECIFICATIONS  .
2. Install the air temperature/pressure sensor and securely tighten the bolt.
3. Connect the throttle body actuator wire harness connector.
4. Install the left side high pressure fuel line. Refer to LINES, FUEL, REMOVAL AND INSTALLATION .
5. Install the air inlet pipe and tighten the band and securely tighten the bolts.
6. Install the front intake air tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
7. Connect the negative battery cable.
