Right Air Tube Between Turbocharger And Charge Air Water Cooler

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION or BELLY PAN, REAR, REMOVAL AND INSTALLATION or BELLY PAN, REAR SUSPENSION, REMOVAL AND INSTALLATION or BELLY PAN, SIDE, REMOVAL AND INSTALLATION .
3. Remove the right front tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
4. Remove the front air dam. Refer to AIR DAM, FRONT, REMOVAL AND INSTALLATIONAIR DAM, FRONT CROSSMEMBER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

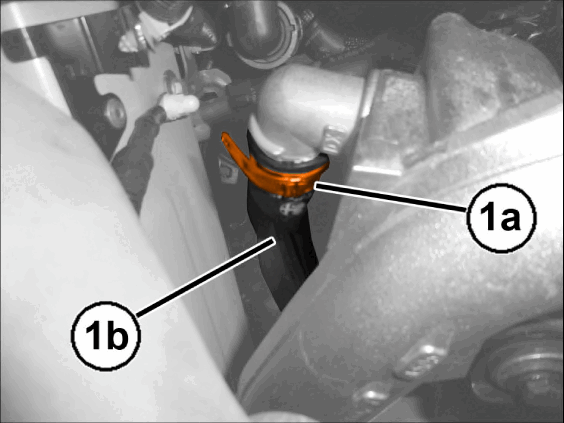

5. Open the band (1a) and disconnect the air outlet pipe from the turbocharger (1b), on the heat exchanger side.

   Courtesy of CHRYSLER GROUP, LLC

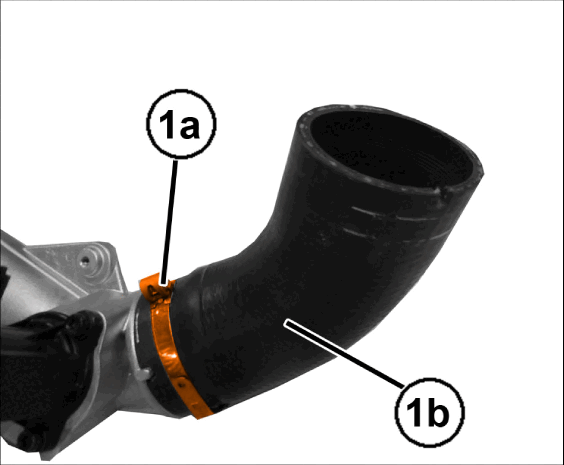

6. Open the band (1a) and disconnect the supercharger air bypass sleeve from the solenoid valve to the right pipe (1b).

   Courtesy of CHRYSLER GROUP, LLC

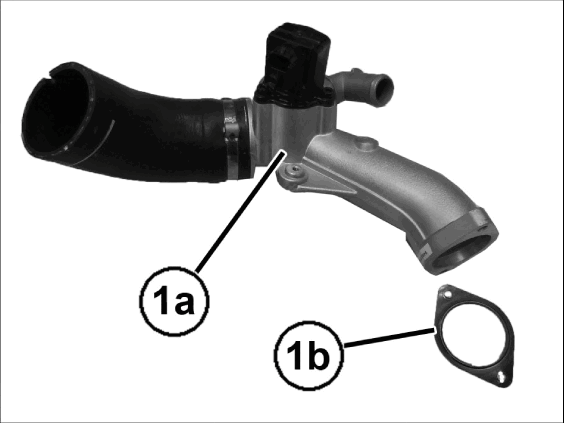

7. Remove the screws (1a) and the pipe (1b), complete with seal.

   Courtesy of CHRYSLER GROUP, LLC

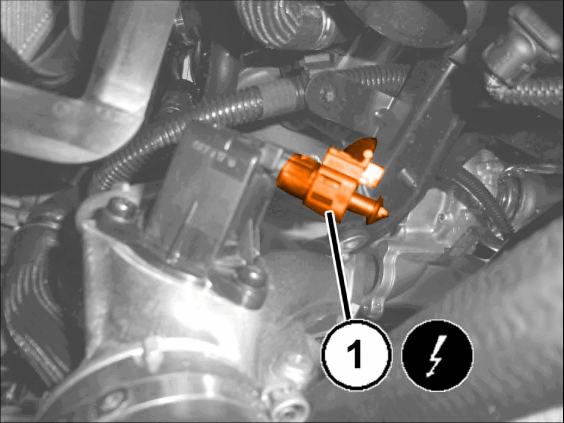

8. Disconnect the right supercharger air bypass solenoid valve wire harness connector (1).

   Courtesy of CHRYSLER GROUP, LLC

9. Remove the air outlet pipe from the right turbocharger (1a), complete with seal (1b).

   Courtesy of CHRYSLER GROUP, LLC

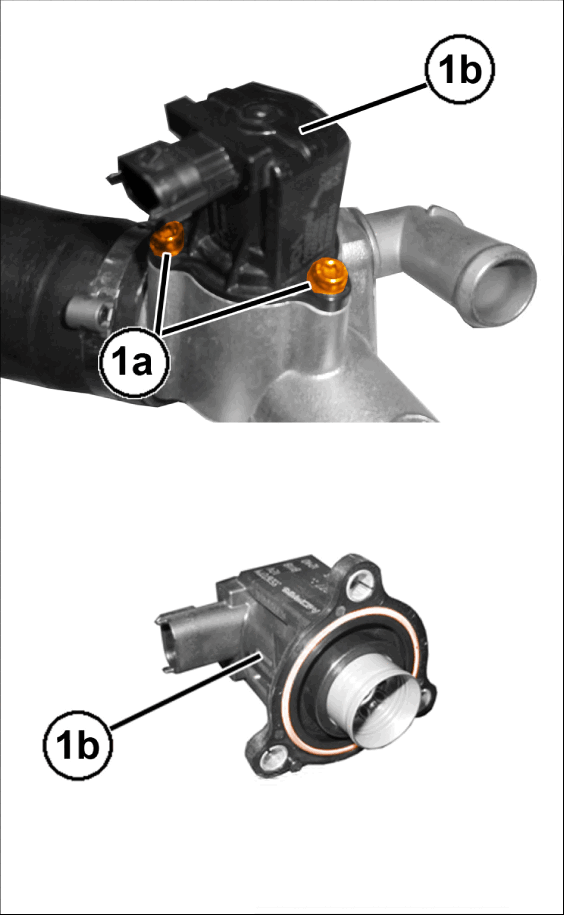

10. If necessary, undo the screws (1a) and remove the right turbocharger air by-pass solenoid valve (1b) complete with O-ring.

    Courtesy of CHRYSLER GROUP, LLC

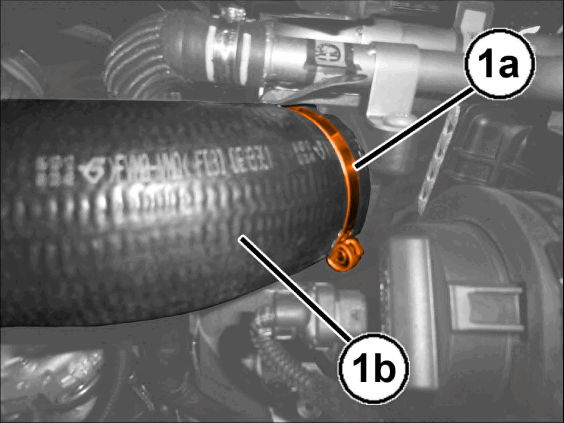

11. If necessary, loosen the band (1a) and disconnect the air supply sleeve between the turbocharger and right heat exchanger (1b).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Using a NEW  gasket (1b), position the outlet pipe from the right turbocharger (1a).

   Courtesy of CHRYSLER GROUP, LLC

2. Connect the right supercharger air bypass solenoid wire harness connector (1).

   Courtesy of CHRYSLER GROUP, LLC

3. Securely tighten the screws (1a) for the right outlet pipe (1b).

   Courtesy of CHRYSLER GROUP, LLC

4. Connect the supercharger air bypass hose (1b) from the solenoid valve to the right pipe (1a) in position and tighten the band (1b).

   Courtesy of CHRYSLER GROUP, LLC

5. Refit the turbocharger air outlet pipe (1a) in position on the heat exchanger side and tighten the band (1b).
6. Install the front air dam. Refer to AIR DAM, FRONT, REMOVAL AND INSTALLATIONAIR DAM, FRONT CROSSMEMBER, REMOVAL AND INSTALLATION .
7. Install the right front tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
8. Install the belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION or BELLY PAN, REAR, REMOVAL AND INSTALLATION or BELLY PAN, REAR SUSPENSION, REMOVAL AND INSTALLATION or BELLY PAN, SIDE, REMOVAL AND INSTALLATION .
9. Connect the negative battery cable.
