Left Air Tube Between Turbocharger And Charge Air Water Cooler

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION or BELLY PAN, REAR, REMOVAL AND INSTALLATION or BELLY PAN, REAR SUSPENSION, REMOVAL AND INSTALLATION or BELLY PAN, SIDE, REMOVAL AND INSTALLATION .
3. Remove the right and left front tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
4. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

5. Open the band (1a) and disconnect the air outlet pipe from the turbocharger (1b), on the heat exchanger side.

   Courtesy of CHRYSLER GROUP, LLC

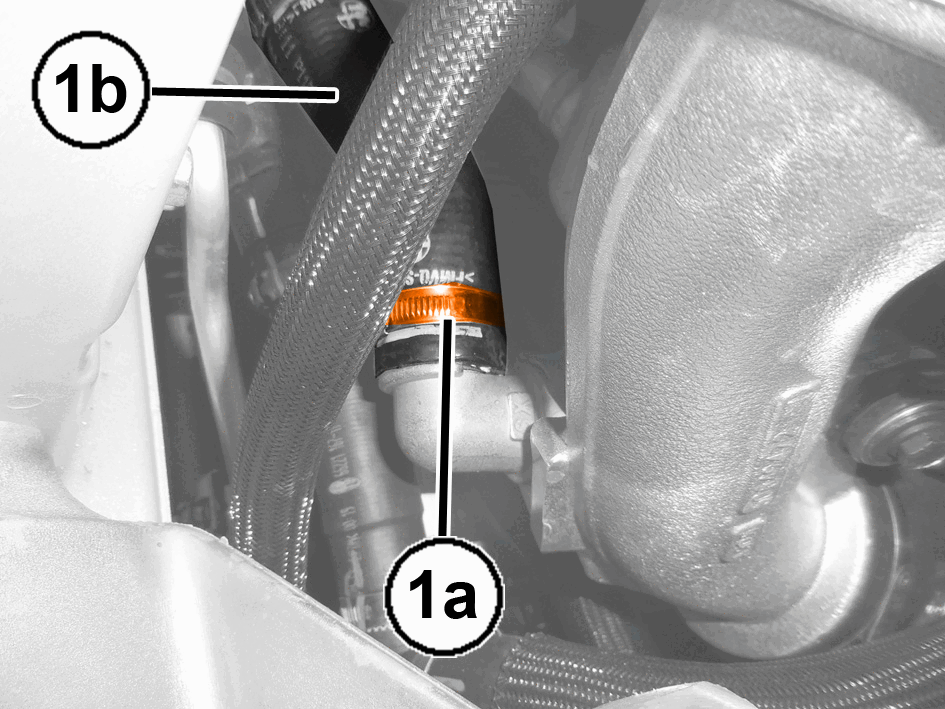

6. Open the band (1a) and disconnect the turbocharger air bypass sleeve from the solenoid valve to the left pipe (1b).

   Courtesy of CHRYSLER GROUP, LLC

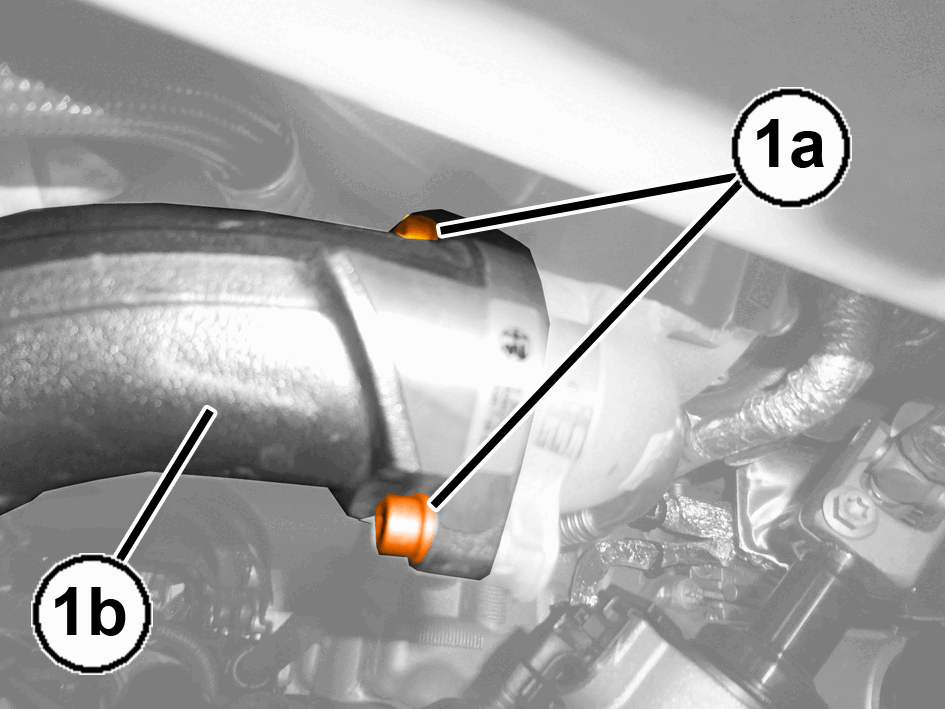

7. Remove the screws (1a) and the pipe (1b), complete with seal.

   Courtesy of CHRYSLER GROUP, LLC

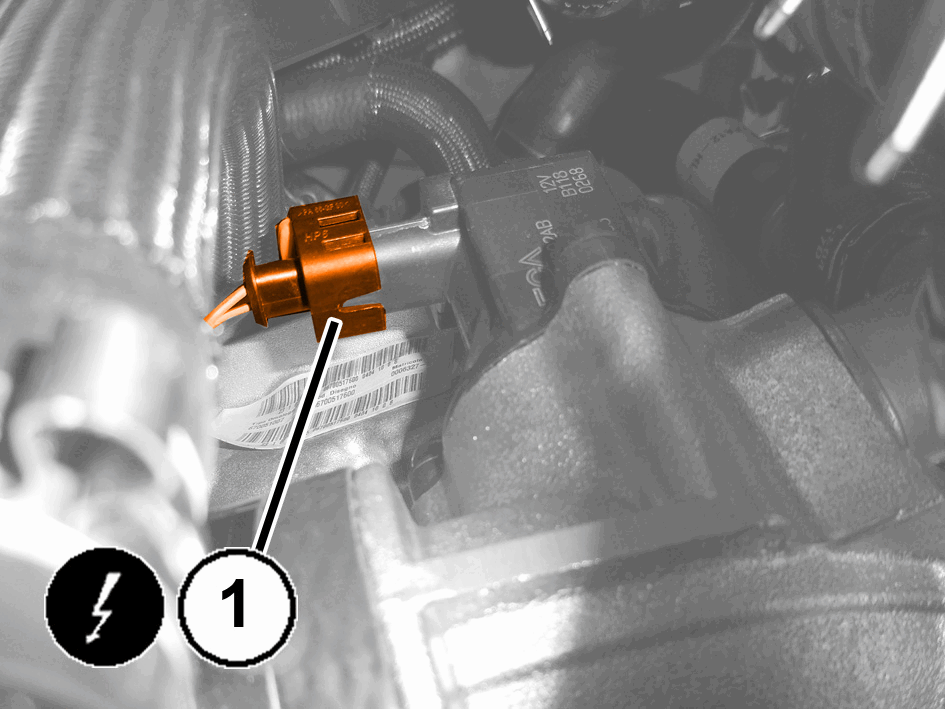

8. Disconnect the left turbocharger air bypass solenoid valve wire harness connector (1).

   Courtesy of CHRYSLER GROUP, LLC

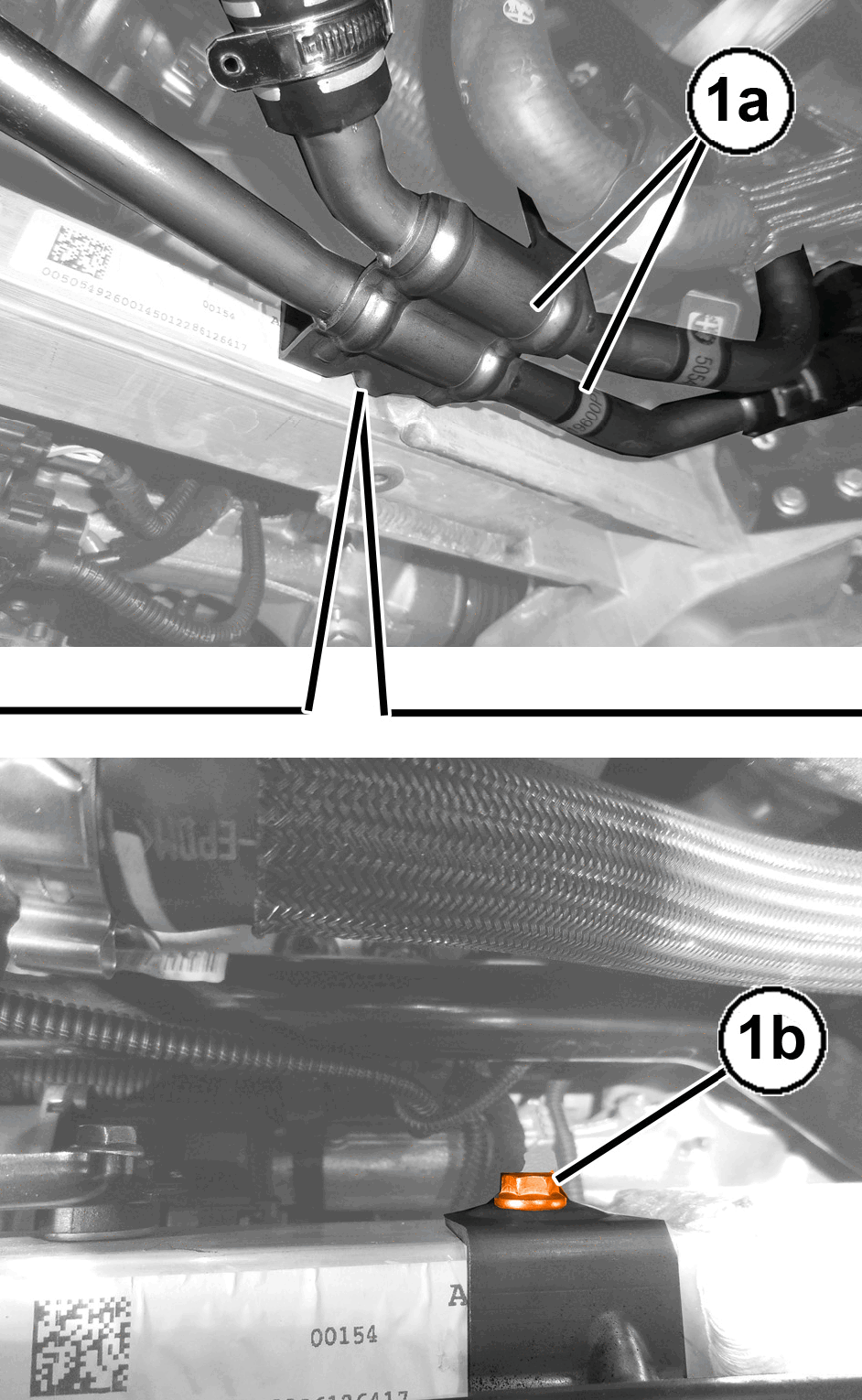

9. Remove the bolt (1a) securing the coolant pipe support bracket and position aside the pipes (1b).

   Courtesy of CHRYSLER GROUP, LLC

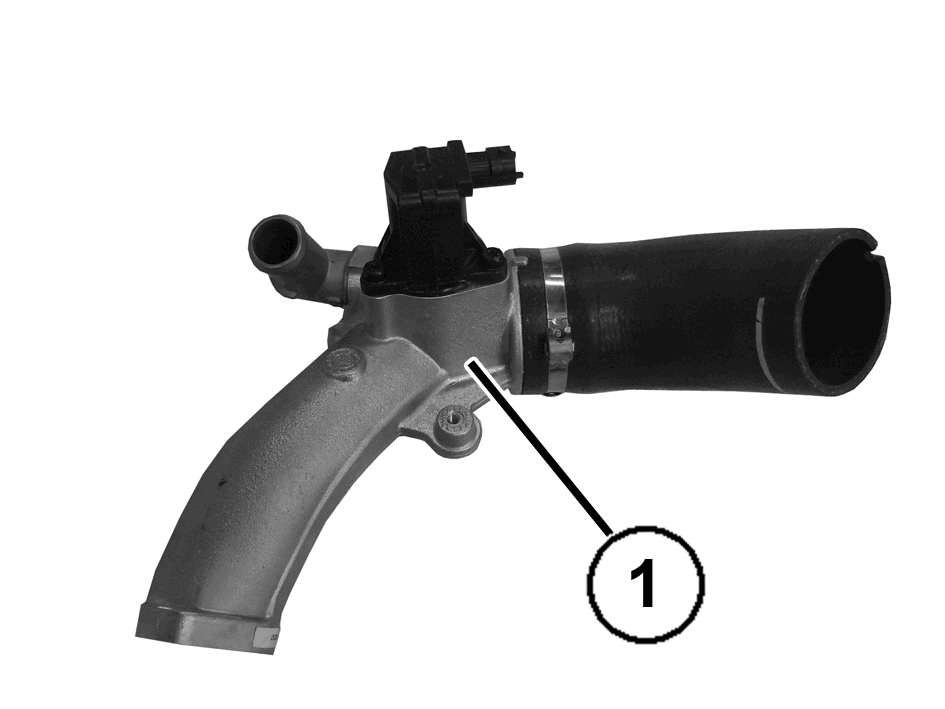

10. Remove the air outlet pipe (1) from the left turbocharger, complete with seal.

    Courtesy of CHRYSLER GROUP, LLC

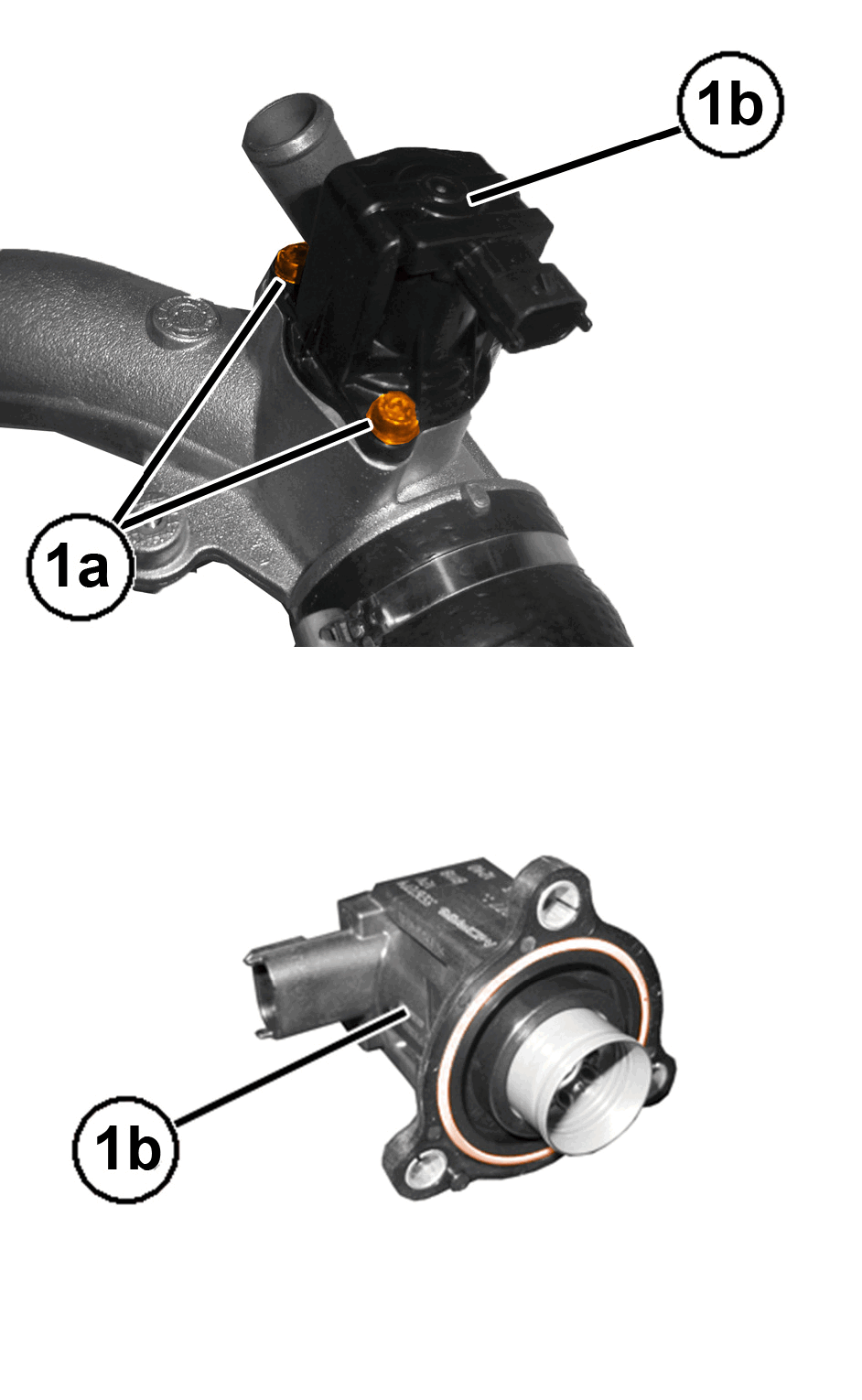

11. If necessary, undo the screws (1a) and remove the left turbocharger air bypass solenoid valve (1b), complete with O-ring.

    Courtesy of CHRYSLER GROUP, LLC

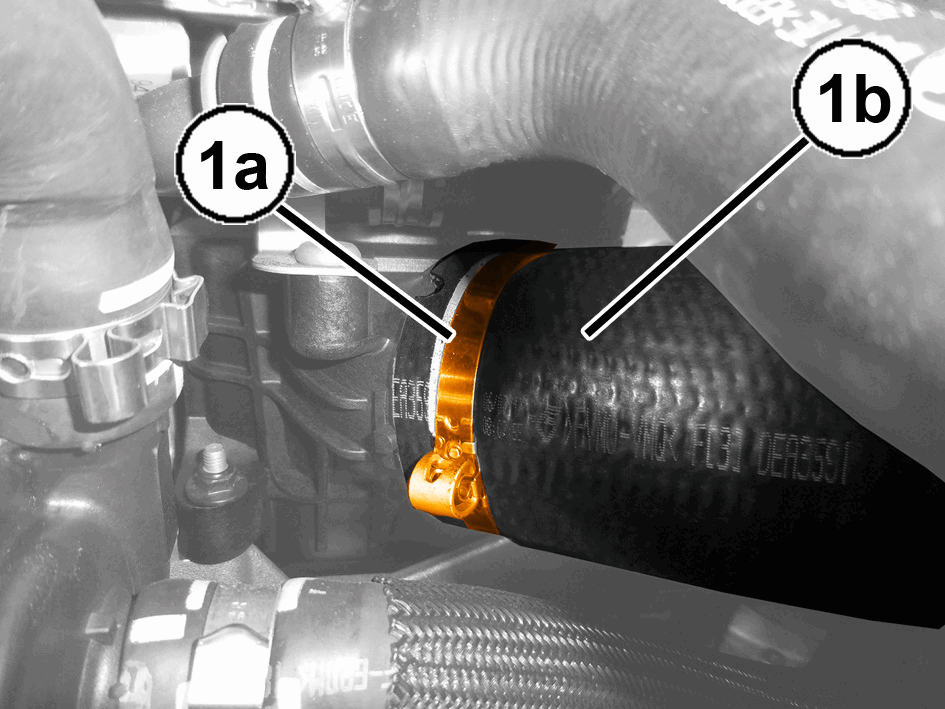

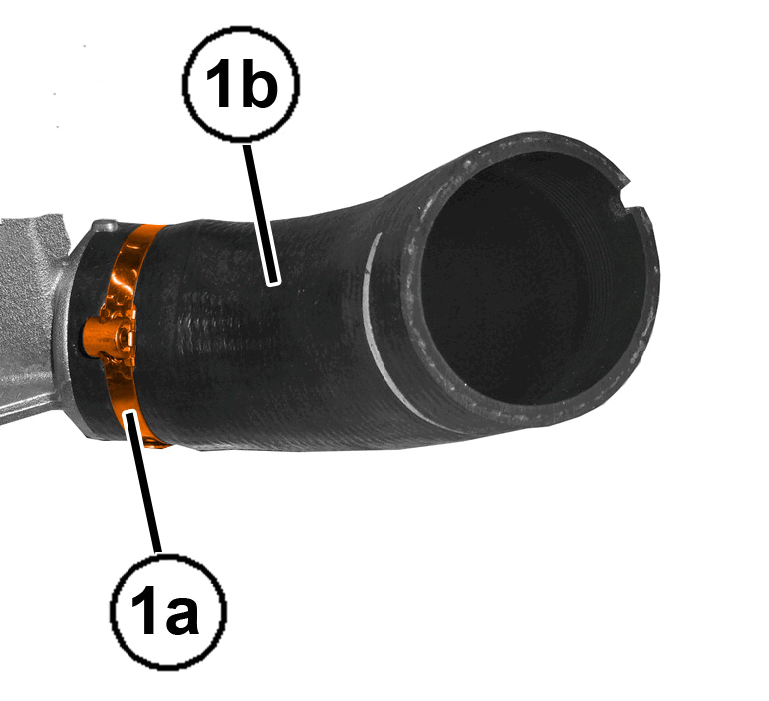

12. If necessary, loosen the band (1a) and disconnect the air supply sleeve between the turbocharger and left heat exchanger.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. If removed, connect the air supply sleeve between the turbocharger and left heat exchanger and tighten the band.

   Courtesy of CHRYSLER GROUP, LLC

2. Position the left outlet pipe (1) from the turbocharger.

   Courtesy of CHRYSLER GROUP, LLC

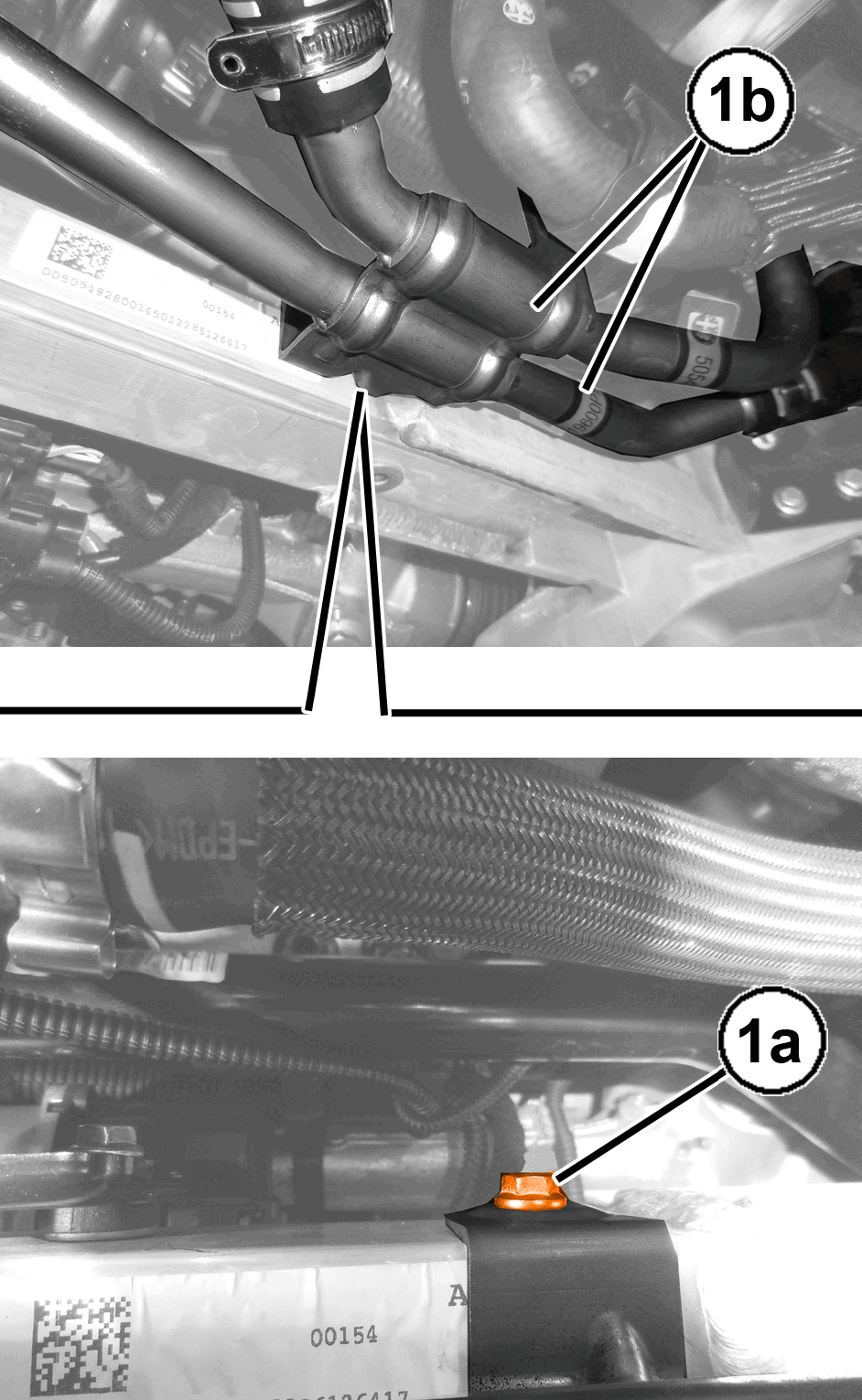

3. Install the engine coolant pipes (1a) and securely tighten the bolt (1b).

   Courtesy of CHRYSLER GROUP, LLC

4. Connect the left turbocharger air bypass solenoid wire harness connector (1).

   Courtesy of CHRYSLER GROUP, LLC

5. Using a NEW  gasket, securely tighten the screws (1a) for the left outlet pipe (1b).

   Courtesy of CHRYSLER GROUP, LLC

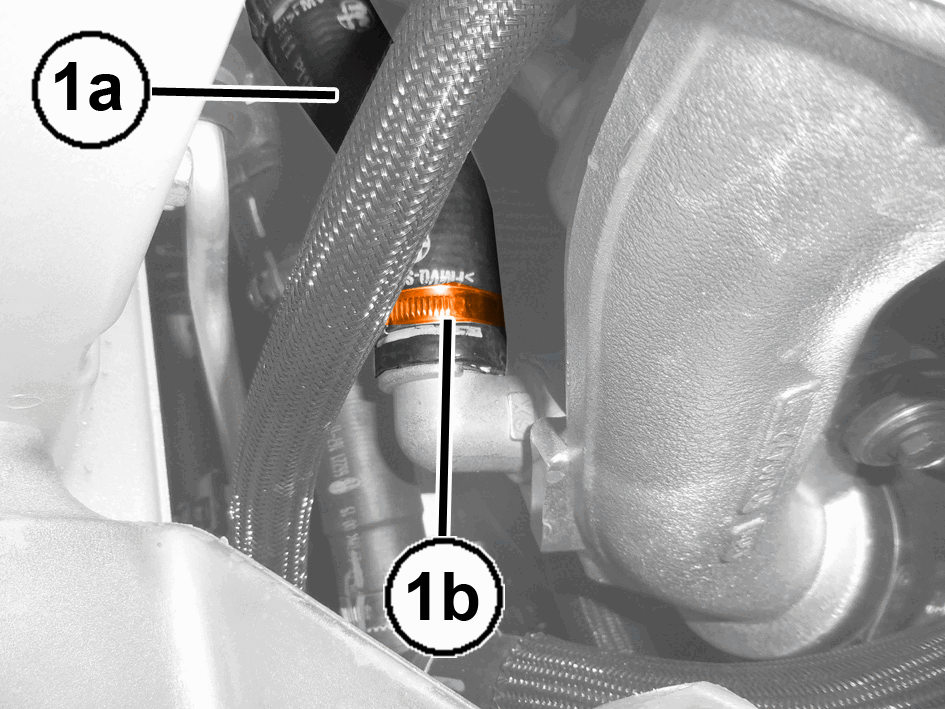

6. Connect the supercharger air bypass sleeve from the solenoid valve to the left pipe (1a) in position and tighten the band (1b).

   Courtesy of CHRYSLER GROUP, LLC

7. Install the turbocharger air outlet pipe (1a) in position on the heat exchanger side and tighten the band (1b).
8. Install the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
9. Install the right and left front tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
10. Install the belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION or BELLY PAN, REAR, REMOVAL AND INSTALLATION or BELLY PAN, REAR SUSPENSION, REMOVAL AND INSTALLATION or BELLY PAN, SIDE, REMOVAL AND INSTALLATION .
11. Connect the negative battery cable.
