Left Side Oil Return Line

WARNING: This page is about a different variant/trim than selected.

REMOVAL

Remove the A/C compressor. Refer to COMPRESSOR, A/C, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

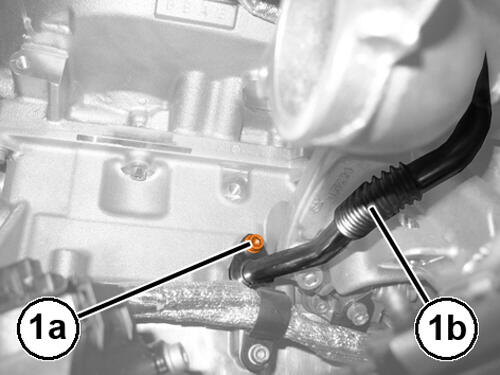

Remove the bolt (1a) securing the engine oil return line to the left turbocharger (1b), engine side.

Courtesy of CHRYSLER GROUP, LLC

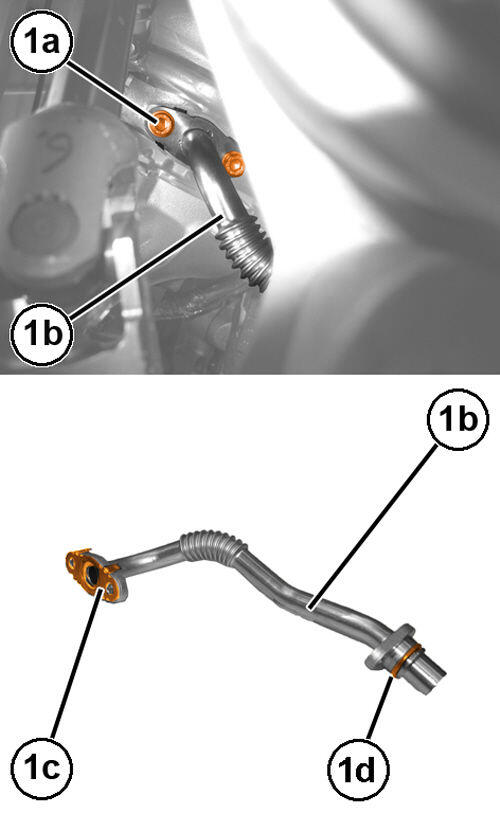

Remove the bolts (1a) securing the engine oil return line to the left turbocharger (1b), complete with gasket (1c) and O-ring (1d).

INSTALLATION

GC0193882

Courtesy of CHRYSLER GROUP, LLC

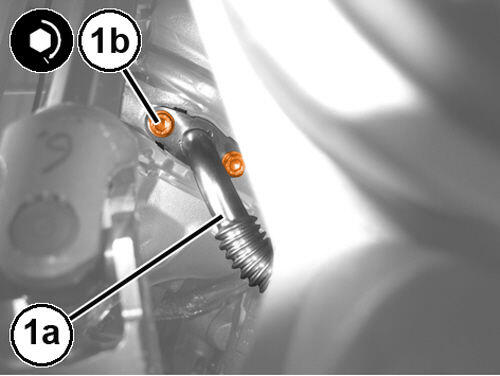

Using a NEW gasket and NEW O-ring, install the oil return line to the right turbocharger (1a) and tighten the bolts (1b) to the proper specification. Refer to TURBOCHARGER .

Courtesy of CHRYSLER GROUP, LLC

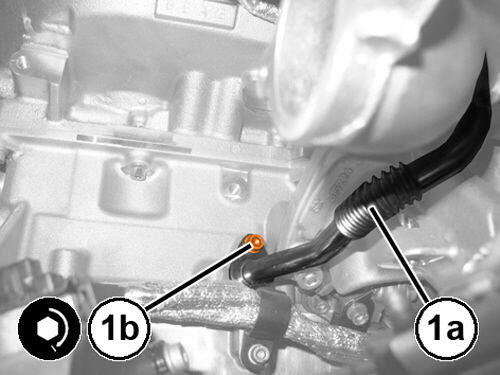

Install the bolt (1a) securing the oil return line from right turbocharger (1b), engine side, and tighten to the proper specification. Refer to TURBOCHARGER .
Install the A/C compressor. Refer to COMPRESSOR, A/C, REMOVAL AND INSTALLATION .
