Right Side Oil Supply Line

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Disconnect and isolate the negative battery cable.
  2. Remove the right side turbocharger/exhaust manifold heat shield. Refer to TURBOCHARGER, REMOVAL AND INSTALLATION .

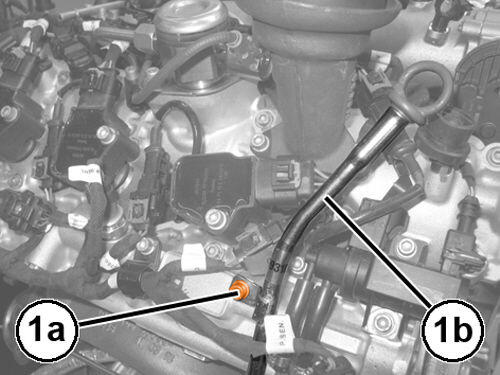

    GC0197459Courtesy of CHRYSLER GROUP, LLC
  3. Remove the bolt (1a) and the oil dipstick tube (1b).

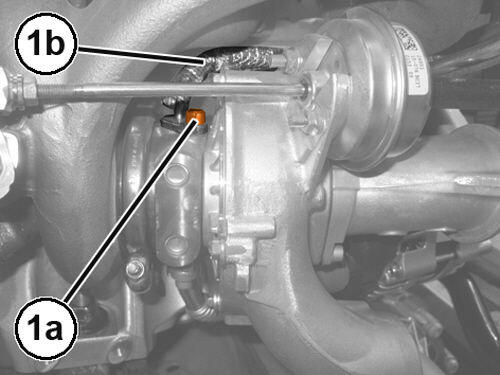

    GC0197864Courtesy of CHRYSLER GROUP, LLC
  4. Remove the bolt (1a) and disconnect the engine oil supply pipe to the right turbocharger (1b).

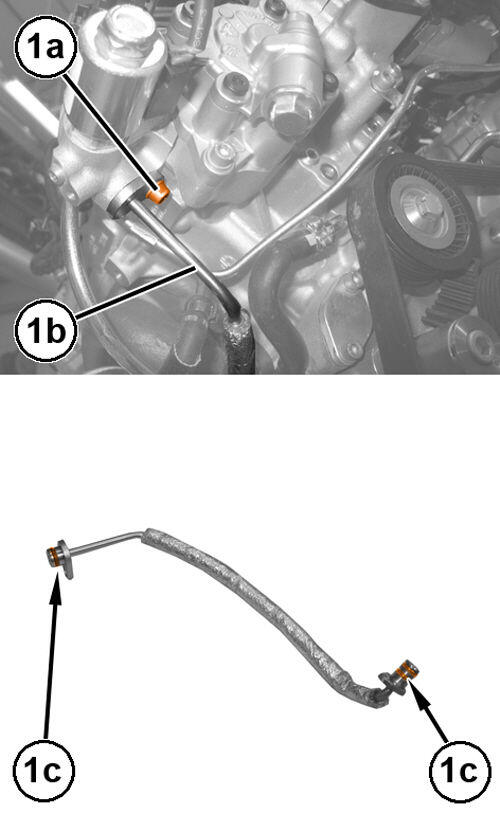

    GC0198081Courtesy of CHRYSLER GROUP, LLC
  5. Remove the bolt (1a) and the right turbocharger oil delivery pipe (1b), complete with O-rings (1c).

INSTALLATION

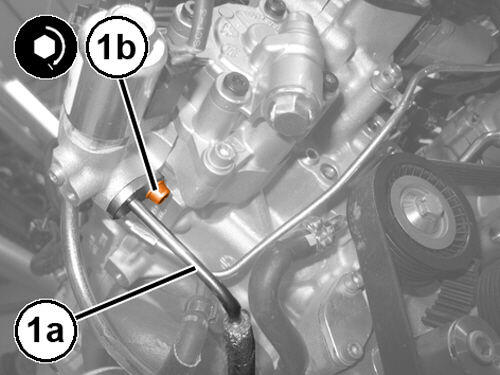

GC0198182Courtesy of CHRYSLER GROUP, LLC
  1. Using a NEW  O-rings, install the engine oil pipe to the right turbocharger (1a), and tighten the bolt (1b) to the proper specification. Refer to TURBOCHARGER  .

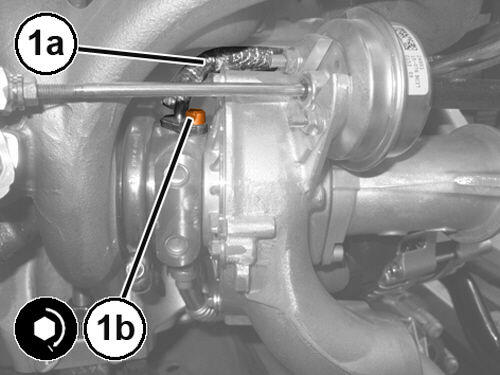

    GC0197858Courtesy of CHRYSLER GROUP, LLC
  2. Connect the engine oil supply pipe to the right turbocharger (1a) and tighten the bolt (1b) to the proper specification. Refer to .
  3. Install the engine oil dipstick tube and securely tighten the bolt.
  4. Install the right side turbocharger heat shield. Refer to TURBOCHARGER, REMOVAL AND INSTALLATION .
  5. Connect the negative battery cable.
