Left Side Oil Supply Line

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the left turbocharger/exhaust manifold assembly. Refer to TURBOCHARGER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

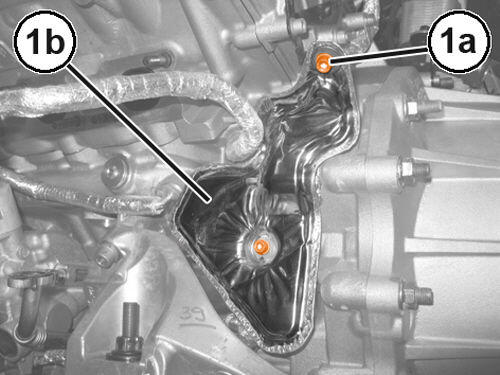

3. Remove the bolts (1a) and the heat shield (1b).

   Courtesy of CHRYSLER GROUP, LLC

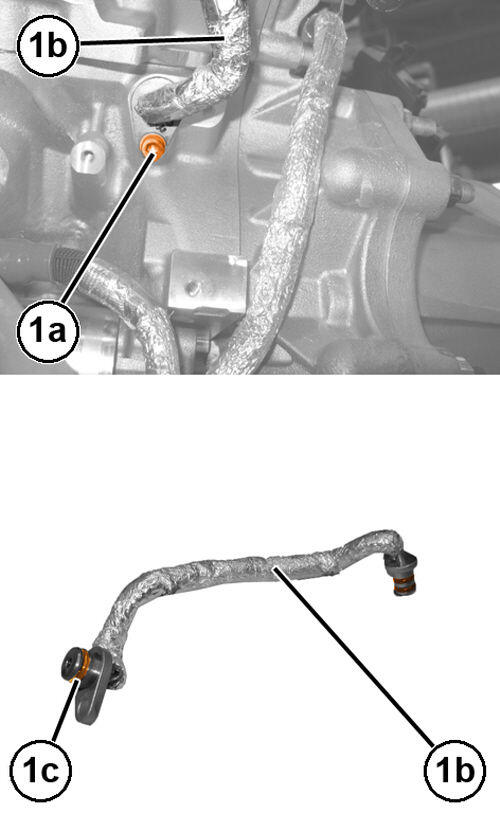

4. Remove the bolt (1a) and the left turbocharger oil delivery line (1b), complete with O-rings (1c).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

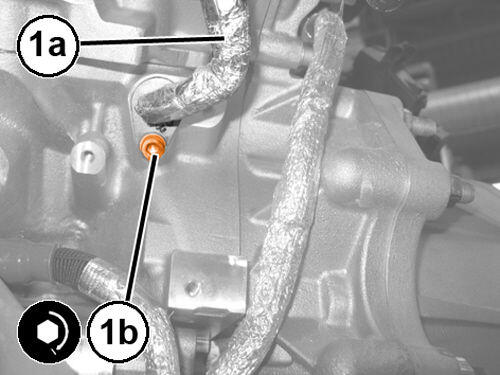

1. Using a NEW  O-rings, install the engine oil pipe to the left turbocharger (1a) and tighten the bolt (1b) to the proper specification. Refer to TURBOCHARGER  .
2. Install the heat shield and securely tighten the bolts.
3. Install the left turbocharger/exhaust manifold assembly. Refer to TURBOCHARGER, REMOVAL AND INSTALLATION .
4. Connect the negative battery cable.
