Left Side

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Disconnect and isolate the negative battery cable.
  2. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
  3. Remove the left upper outlet air tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

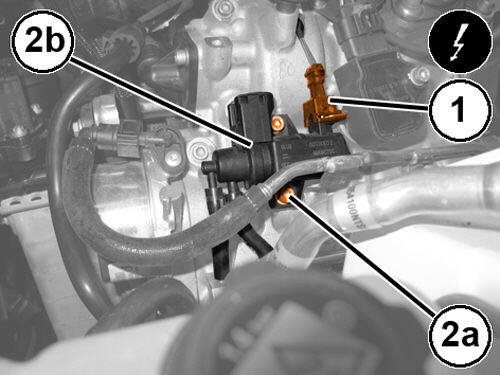

    GC0193112Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the left turbocharger waste-gate solenoid wire harness connector (1).
  5. Remove the bolts (2a) and the waste-gate solenoid (2b).

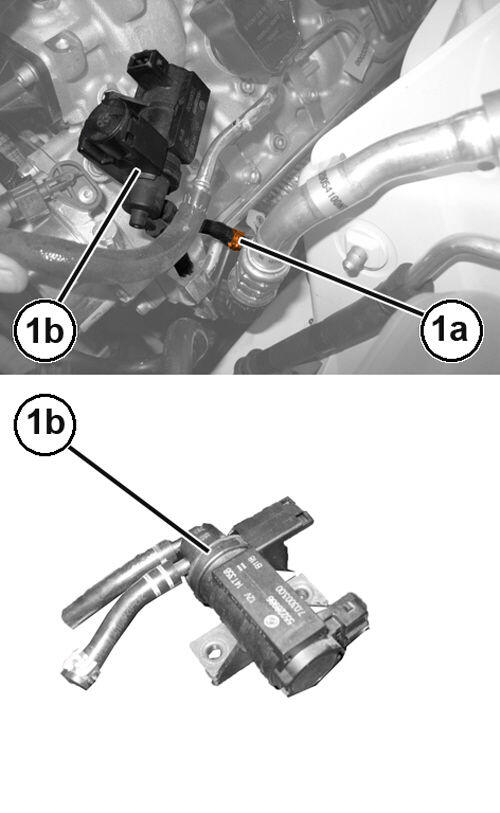

    GC0193627Courtesy of CHRYSLER GROUP, LLC
  6. Loosen the clamp (1a) and remove the left turbocharger waste-gate solenoid (1b) and the hose.

INSTALLATION

  1. Install the left turbocharger waste-gate solenoid hose and close the clamp.
  2. Install the left turbocharger waste-gate solenoid and securely tighten the bolts.
  3. Connect the left turbocharger waste-gate solenoid wire harness connector.
  4. Install the left upper outlet air tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
  5. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
  6. Connect the negative battery cable.
