Left Side

WARNING: This page is about a different variant/trim than selected.

REMOVAL

Remove the left side turbocharger/exhaust manifold heat shield. Refer to TURBOCHARGER, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

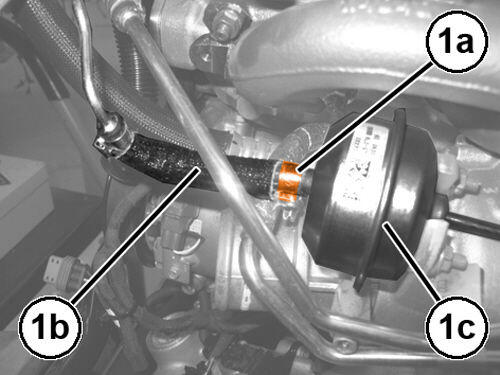

Loosen the clamp (1a) and disconnect the vacuum hose (1b) from the waste-gate actuator (1c).

Courtesy of CHRYSLER GROUP, LLC

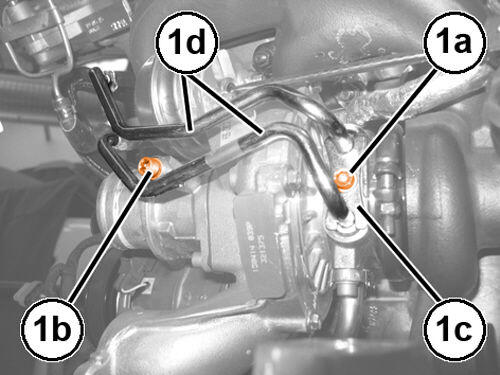

Remove the bolts (1a), (1b), the forked flange (1c) and disconnect the turbocharger water supply and return pipes (1d), complete with O-rings.

Courtesy of CHRYSLER GROUP, LLC

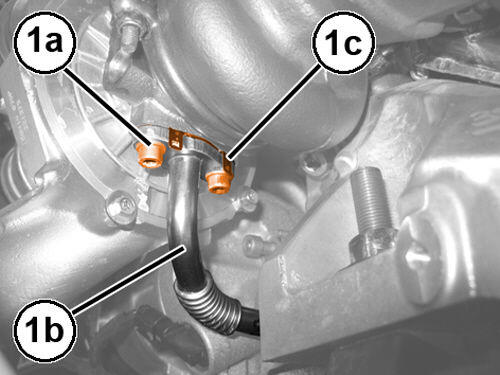

Remove the bolts (1a) and disconnect the engine oil return pipe from the turbocharger (1b), with gaskets (1c).

Courtesy of CHRYSLER GROUP, LLC

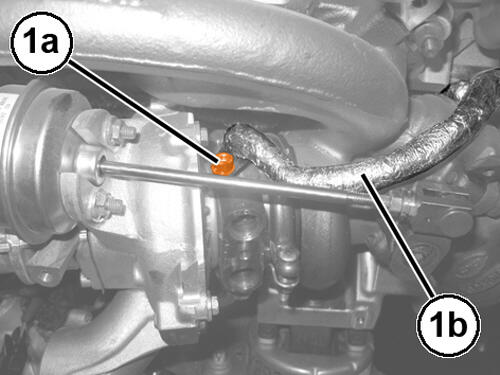

Remove the bolt (1a) and disconnect the engine oil supply pipe to the turbocharger (1b), complete with O-ring.

Courtesy of CHRYSLER GROUP, LLC

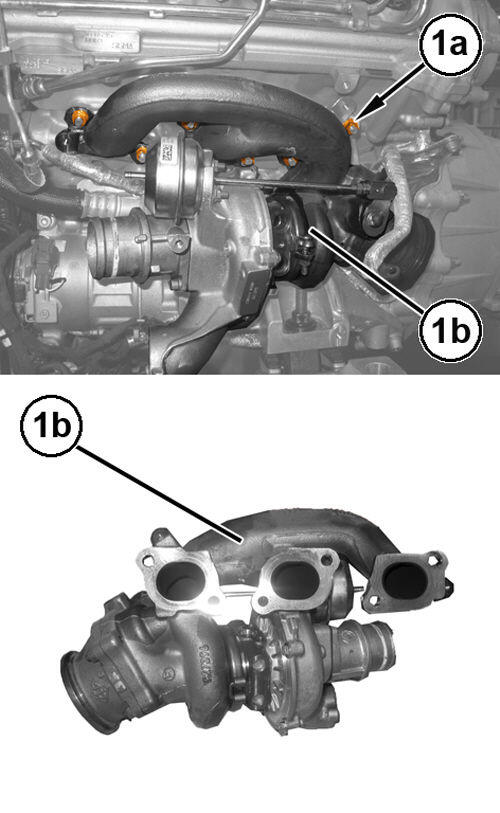

Remove the nuts (1a) and the turbocharger and left exhaust manifold assembly (1b).
Remove the gasket.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

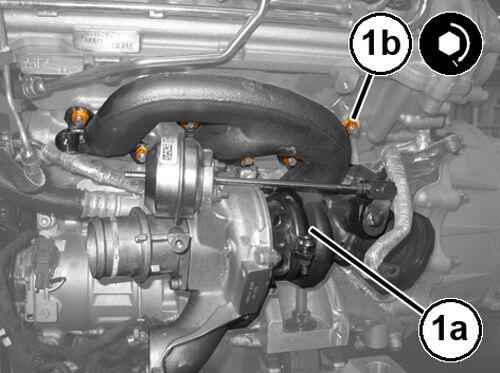

Using a NEW gasket, install the turbocharger and left exhaust manifold assembly (1a), and tighten the NEW nuts (1b) to the proper specification. Refer to TURBOCHARGER .

Courtesy of CHRYSLER GROUP, LLC

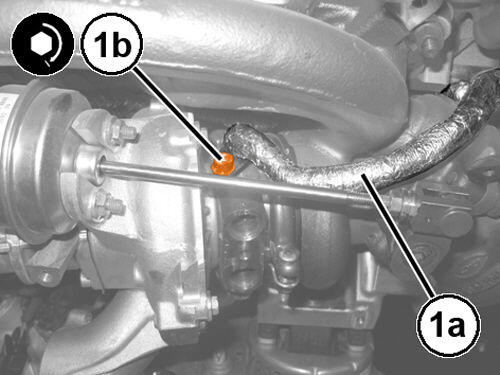

Using a NEW O-ring, install the engine oil supply pipe to the turbocharger (1a) and tighten the bolts (1b), to the proper specification. Refer to TURBOCHARGER .

Courtesy of CHRYSLER GROUP, LLC

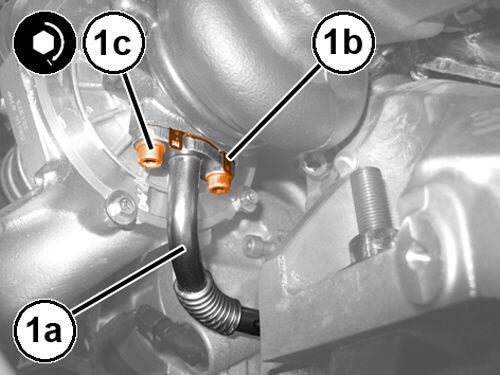

Using a NEW gasket (1b), install the engine oil return pipe to the turbocharger (1a) and tighten the bolts (1c), to the proper specification. Refer to TURBOCHARGER .

Courtesy of CHRYSLER GROUP, LLC

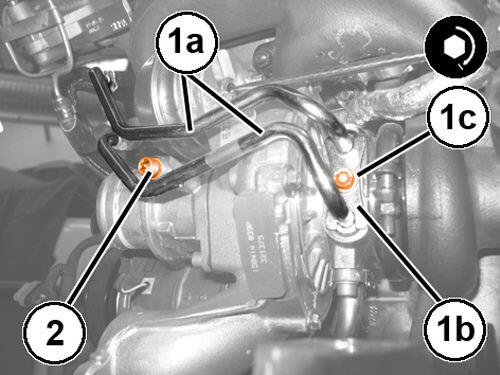

Using a NEW O-ring, install the turbocharger water supply and return pipes (1a), position the forked flange (1b) and tighten the bolt (1c) to the proper specification. Refer to TURBOCHARGER .
Install the turbocharger water supply pipe bracket bolt (2) and securely tighten.
Connect the waste-gate actuator vacuum flexible hose and tighten the clamp.
Install the left side turbocharger/exhaust manifold heat shield. Refer to TURBOCHARGER, REMOVAL AND INSTALLATION .
