Left Side Turbocharger Heat Shield

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Disconnect the negative battery cable.
  2. Remove the engine and transmission. Refer to REMOVAL AND INSTALLATION .
    GC0197688Courtesy of CHRYSLER GROUP, LLC

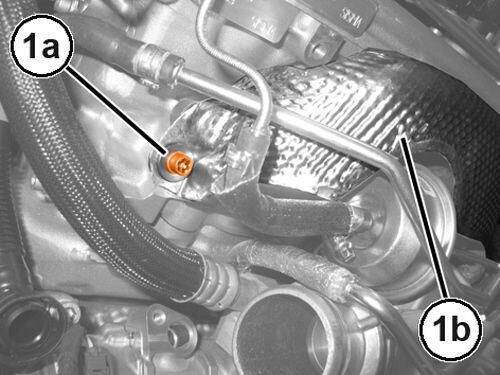

  3. Remove the bolt (1a) securing the left side front turbocharger/exhaust manifold heat shield (1b).
    GC0207802Courtesy of CHRYSLER GROUP, LLC

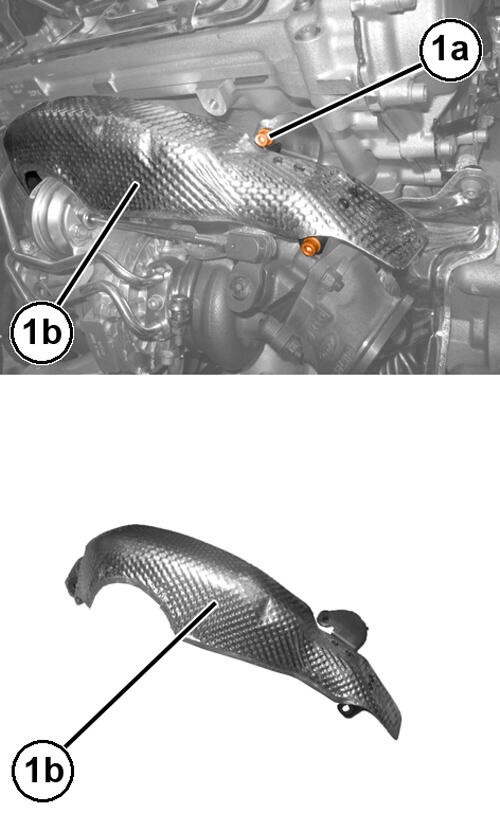

  4. Remove the bolts (1a) and the left side turbocharger/exhaust manifold heat shield (1b).

INSTALLATION

  1. Install the left side turbocharger/exhaust manifold heat shield and securely tighten the bolts.
  2. Install the engine and transmission. Refer to REMOVAL AND INSTALLATION .
  3. Connect the negative battery cable.
