Right Exhaust Gas Outlet Turbocharger Heat Shield

WARNING: This page is about a different variant/trim than selected.

REMOVAL

Remove the right rear coolant tube from the turbocharger. Refer to LINES, TUBES AND HOSES, TURBOCHARGER, OIL AND COOLANT, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

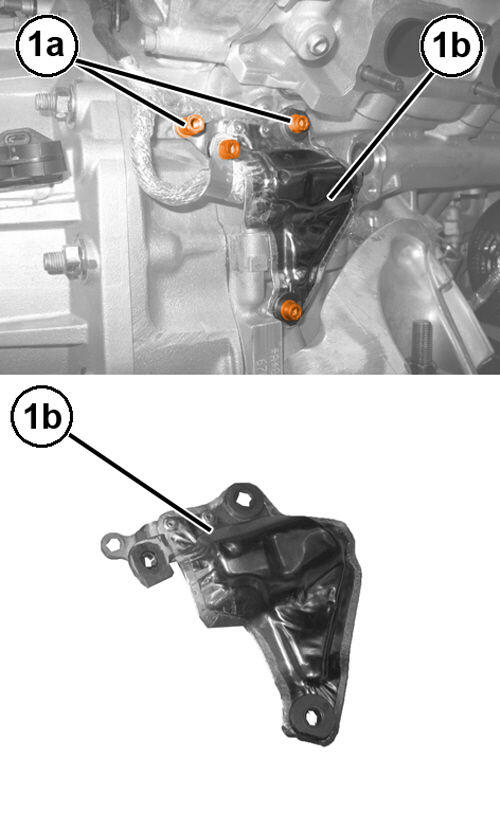

Remove the bolts (1a) and the right turbocharger heat shield (1b).

INSTALLATION

Install the right turbocharger heat shield and securely tighten the bolts.
Install the right rear coolant tube from the turbocharger. Refer to LINES, TUBES AND HOSES, TURBOCHARGER, OIL AND COOLANT, REMOVAL AND INSTALLATION .
