Left Exhaust Gas Outlet Turbocharger Heat Shield

WARNING: This page is about a different variant/trim than selected.

REMOVAL

Remove the left catalytic converter. Refer to CONVERTER, CATALYTIC, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

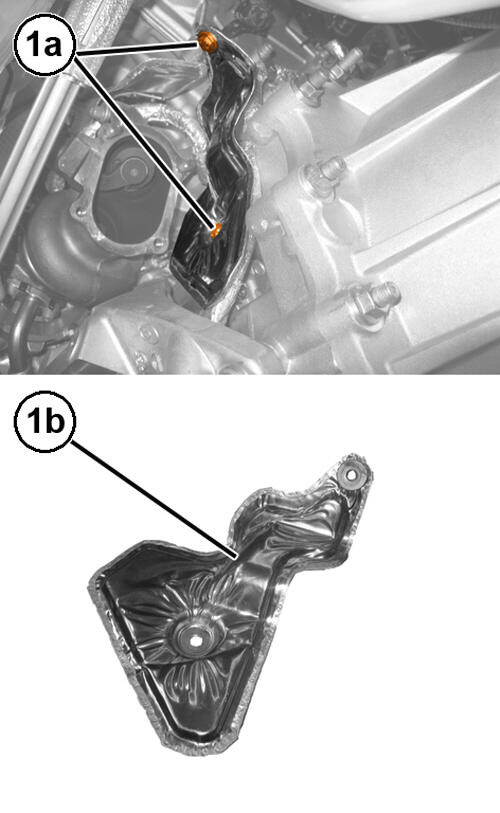

Remove the bolts (1a) and the left turbocharger heat shield (1b).

INSTALLATION

Install the left turbocharger heat shield and securely tighten the bolts.
Install the left catalytic converter. Refer to CONVERTER, CATALYTIC, REMOVAL AND INSTALLATION .
