Right Air Inlet Connector To Turbocharger

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Disconnect and isolate the negative battery cable.
  2. Remove the right turbocharger intercooler. Refer to COOLER AND HOSES, CHARGE AIR, REMOVAL AND INSTALLATION .

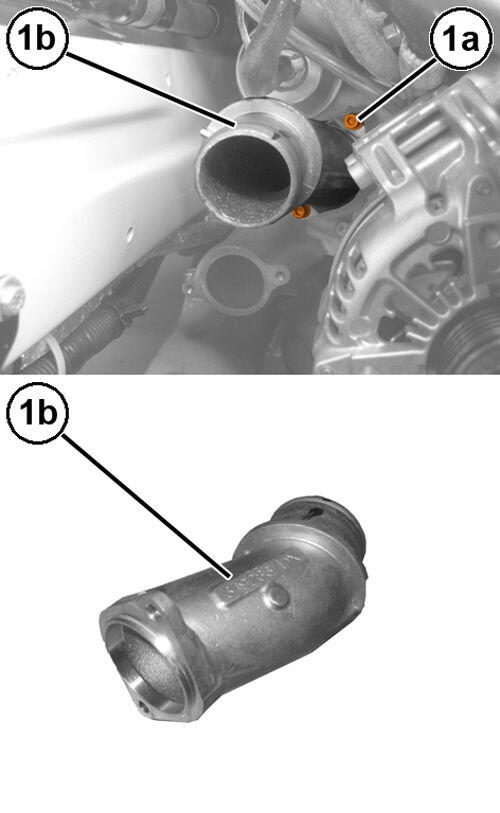

    GC0197567Courtesy of CHRYSLER GROUP, LLC
  3. Remove the bolts (1a) and the right turbocharger air outlet connector (1b) complete with gasket.

INSTALLATION

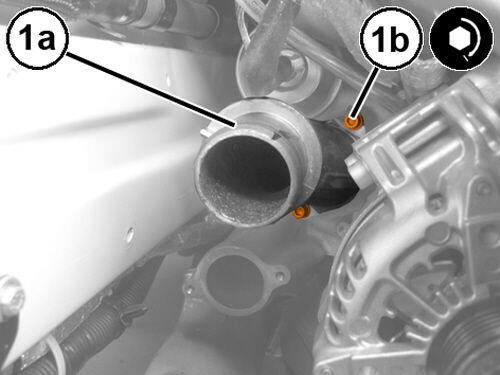

GC0198004Courtesy of CHRYSLER GROUP, LLC
  1. Using a NEW  gasket, install the right turbocharger air intake connector (1a) and tighten the bolts (1b) to the proper specification. Refer to TURBOCHARGER  .
  2. Install the right turbocharger intercooler. Refer to COOLER AND HOSES, CHARGE AIR, REMOVAL AND INSTALLATION .
  3. Connect the negative battery cable.
