Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
2. Remove the radio. Refer to DISPLAY, RADIO, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

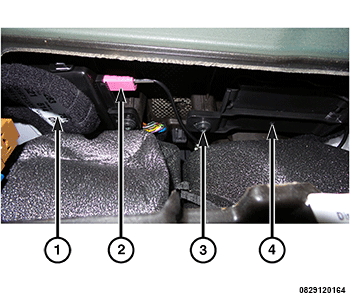

3. Disconnect the Remote Start Antenna (RSA) (4) wiring harness connector (2) from the Radio Frequency Hub (RFH) (1).
4. Remove the two screws (3) securing the RSA to the dash pad.
5. Remove the RSA from the vehicle.

INSTALLATION

1. Using two screws, secure the RSA to the dash pad.
2. Connect the RSA wiring harness connector to the RFH.
3. Install the radio. Refer to DISPLAY, RADIO, REMOVAL AND INSTALLATION .
4. Connect the negative battery cable.
