Removal And Installation: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Disconnect and isolate the negative battery cable.
3. Remove the rear fascia. Refer to FASCIA, REAR, REMOVAL AND INSTALLATION  or FASCIA, REAR, LOWER, REMOVAL AND INSTALLATION .

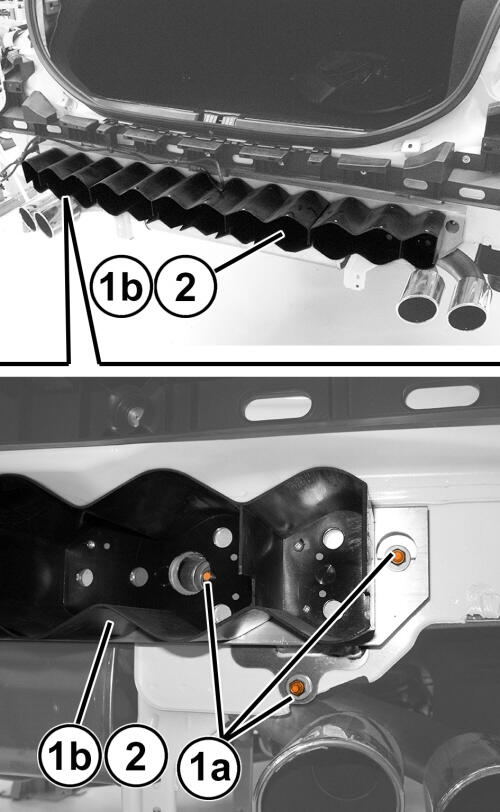

4. Remove the nuts (1a) attaching the absorber (1b) to the body.
5. Remove the absorber (1b).

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

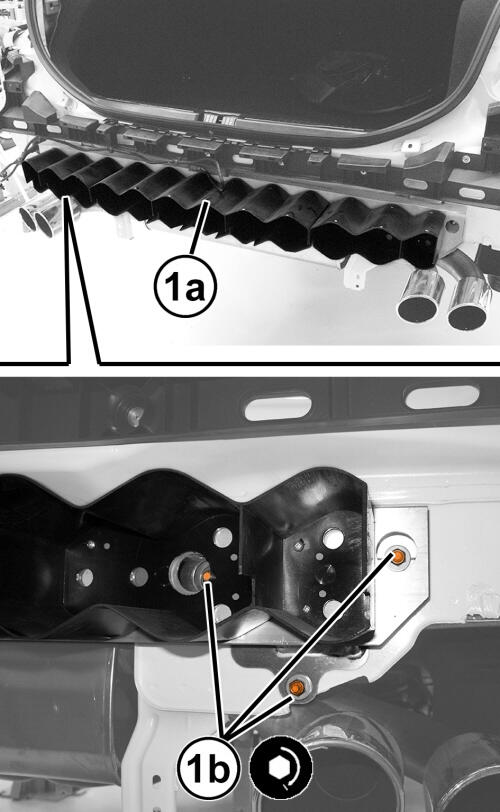

1. Position the absorber (1a) and install the nuts (1b) to the body, then tighten them to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
2. Install the rear fascia. Refer to FASCIA, REAR, REMOVAL AND INSTALLATION  or FASCIA, REAR, LOWER, REMOVAL AND INSTALLATION .
3. Connect the negative battery cable.
