Removal And Installation: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .

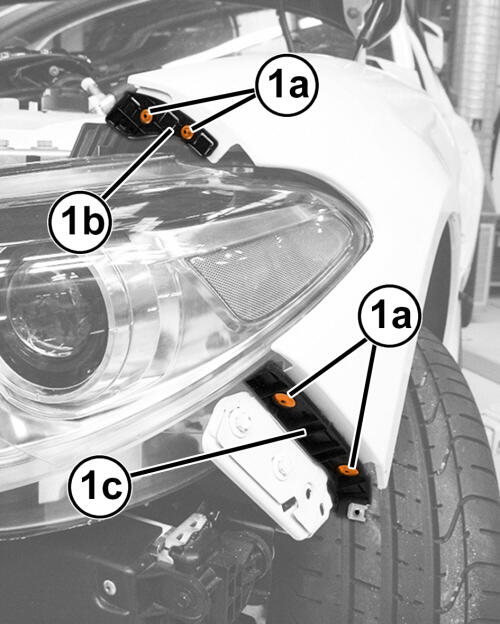

2. Using a drill, remove the rivets (1a) from the side support (1b) or (1c).
3. Remove the side support (1b) or (1c).

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

1. Position the side support (1a) or (1b) in place.
2. Apply new rivets to side support.
3. Install the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

1. Remove the headlight assembly. Refer to UNIT, FRONT LAMP, REMOVAL AND INSTALLATION .
2. Remove the screws (1).
3. Remove the fascia support (2).

Courtesy of CHRYSLER GROUP, LLC

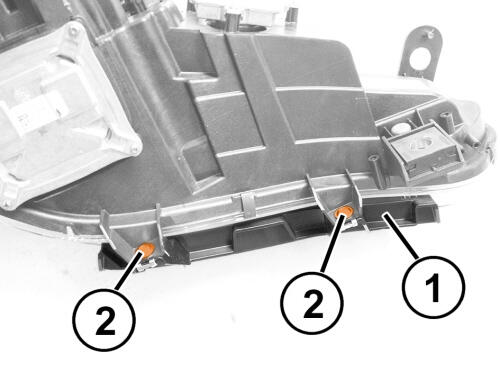

INSTALLATION

1. Position the fascia support (1) in place.
2. Install the screws (2).
3. Install the headlight assembly. Refer to UNIT, FRONT LAMP, REMOVAL AND INSTALLATION .
