Removal - Side

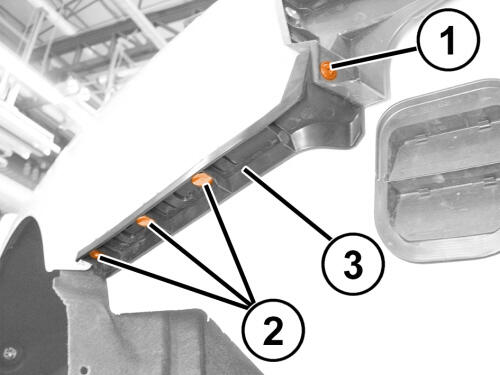

Courtesy of CHRYSLER GROUP, LLC

1. Remove the rear fascia. Refer to FASCIA, REAR, REMOVAL AND INSTALLATION  or FASCIA, REAR, LOWER, REMOVAL AND INSTALLATION .
2. Remove the screw and the washer (1).
3. Remove the rivets (2) using a drill.
4. Remove the fascia side support (3).

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

1. Position the bumper side support (1).
2. Position the washer and tighten the screw (2).
3. Install new rivets (3).
4. Install the rear fascia. Refer to FASCIA, REAR, REMOVAL AND INSTALLATION  or FASCIA, REAR, LOWER, REMOVAL AND INSTALLATION .
