Removal - Under Light Assembly

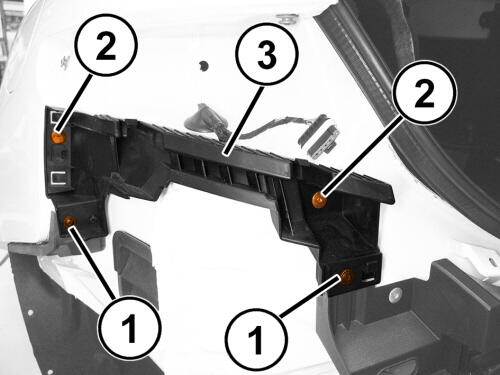

Courtesy of CHRYSLER GROUP, LLC

1. Remove the rear fascia. Refer to FASCIA, REAR, REMOVAL AND INSTALLATION  or FASCIA, REAR, LOWER, REMOVAL AND INSTALLATION .
2. Remove the screws and the washers (1).
3. Remove the rivets (2) using a drill.
4. Remove the rear support (3).

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

1. Position and the rear support (1) in place.
2. Position the washers and tighten the screws (2).
3. Install new rivets (3).
4. Install the rear fascia. Refer to FASCIA, REAR, REMOVAL AND INSTALLATION  or FASCIA, REAR, LOWER, REMOVAL AND INSTALLATION .
