Removal And Installation: Removal

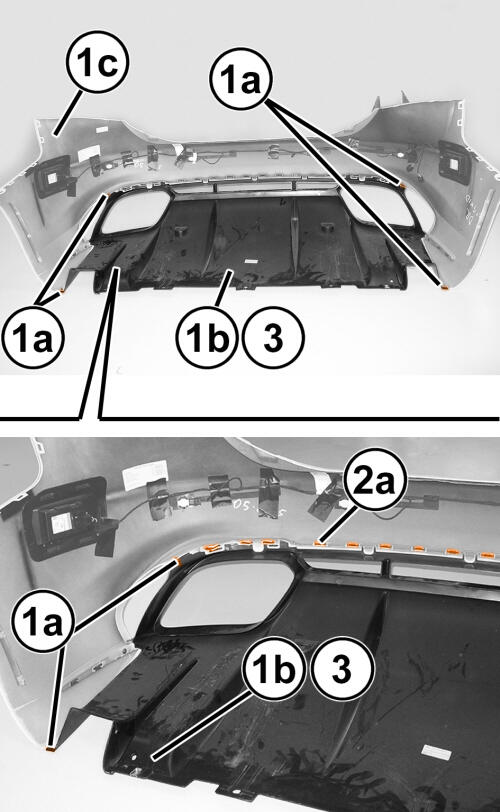

GC0197756Courtesy of CHRYSLER GROUP, LLC
  1. Remove the rear fascia. Refer to FASCIA, REAR, REMOVAL AND INSTALLATION  or FASCIA, REAR, LOWER, REMOVAL AND INSTALLATION .
  2. Remove the screws (1a) securing the lower fascia (1b) to the fascia (1c).
  3. Release the various retainers (2a) securing the lower fascia (1b) to the fascia (1c).
  4. Remove the lower fascia panel (1b).

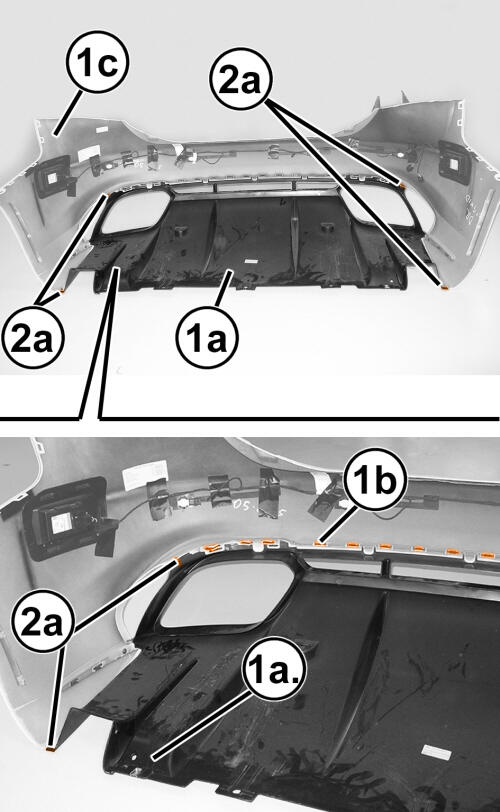

GC0197714Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

  1. Position the lower fascia panel (1a) and secure the various retainers (1b) joining it to the fascia (1c).
  2. Install the screws (2a) securing the lower fascia panel (1a) to the fascia (1c).
  3. Install the rear fascia. Refer to FASCIA, REAR, REMOVAL AND INSTALLATION  or FASCIA, REAR, LOWER, REMOVAL AND INSTALLATION .
