Removal And Installation: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

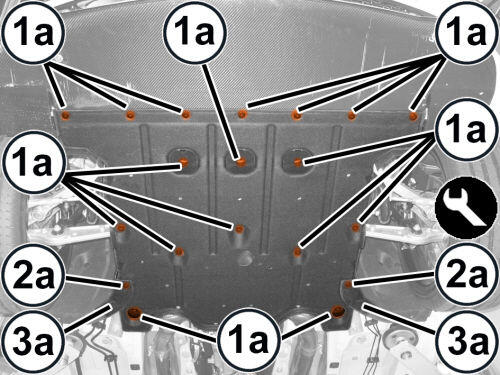

2. Undo the fixing screws (1a) for the under-engine guard (1b).
3. Release the additional wheel arch fixing retainers (2a) with central pins, using the special tool.
4. Remove the under-engine guard (1b) by releasing it from the edges (3a) of the wheel arch covers and, if present, from the edges of the side trims.

INSTALLATION

1. Position the under-engine guard and engage it with the edges of the wheel arch covers and, if present, with the edges of the side trims.
2. Engage the retainers with central pins.
3. Tighten the fixing screws for the under-engine guard.
