Removal And Installation: Removal

GC0197557Courtesy of CHRYSLER GROUP, LLC
  1. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION BELLY PAN, REAR, REMOVAL AND INSTALLATION  or BELLY PAN, REAR SUSPENSION, REMOVAL AND INSTALLATION  or BELLY PAN, SIDE, REMOVAL AND INSTALLATION .
  2. Undo the screws (1a) fixing the rear side guard (1b).
  3. Open the button (2a) on the rear wheel arch side (2b).
  4. Retain the guard (1b).

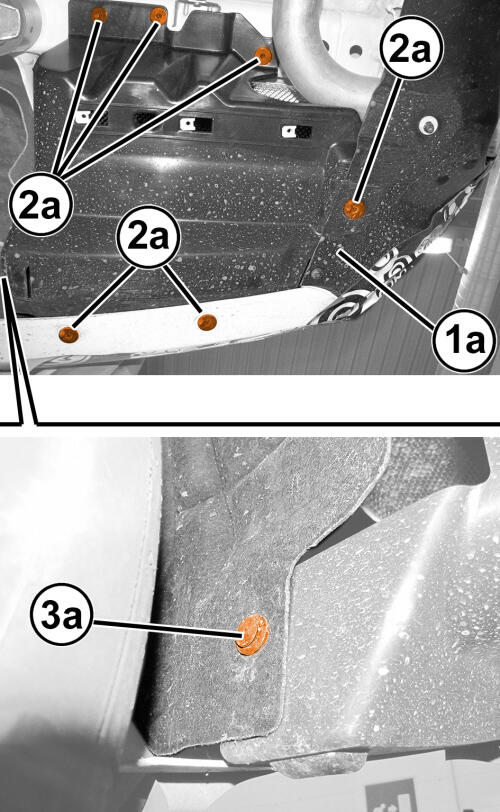

GC0197969Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

  1. Position the control unit (1a).
  2. Tighten the bolts (2a) fixing the guard (1a).
  3. Close the button (3a) fastening the guard.
