Removal - 2.9L

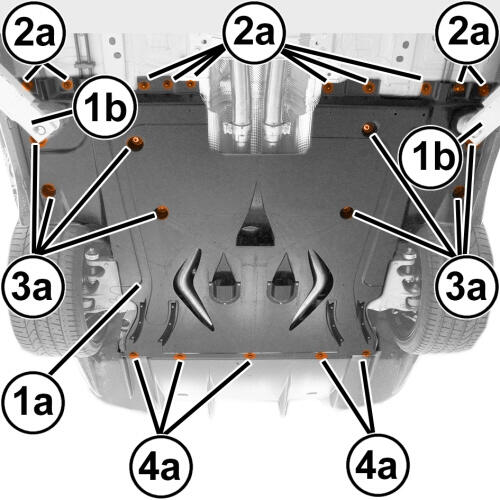

Courtesy of CHRYSLER GROUP, LLC

1. Remove the side belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION BELLY PAN, REAR, REMOVAL AND INSTALLATION  or BELLY PAN, REAR SUSPENSION, REMOVAL AND INSTALLATION  or BELLY PAN, SIDE, REMOVAL AND INSTALLATION .
2. Remove the screws (1a) fixing the rear belly pan (1b).
3. Remove the nuts (2a).
4. Release the retaining pins with center pin (3a), using the appropriate tool.
5. Lower the car, then release the rear arms (4a) from the lift.
6. Remove the rear belly pan (1b).

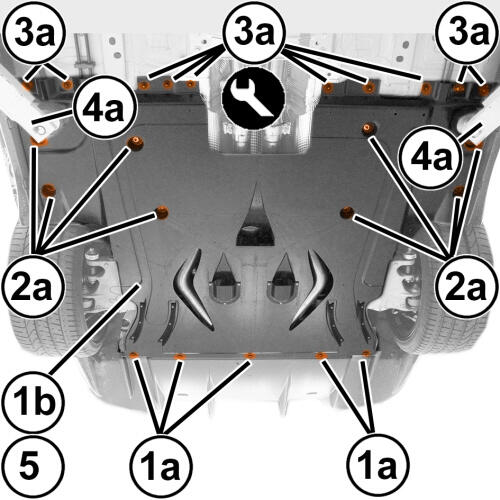

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

1. Position the rear belly pan (1a), then position the rear arms (1b) and the arms on the lift.
2. Position the rear belly pan (1a), following the overlapping order with the other guards, then engage the retainer push pins with the center pin (2a).
3. Tighten the nuts (3a).
4. Tighten the screws (4a).
