Rear Drive Unit (RDU) Left Body Fluid Drain And Fill
NOTE:
The rear differential oil change is not a scheduled maintenance service.
NOTE:
The procedure described here must only be used if replacing components resulting in a loss of oil.
NOTE:
Be sure the vehicle is on a level surface, or is hoisted in a level manner, in order to obtain the correct fill level.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the rear underbody protection. Refer to BELLY PAN, REAR SUSPENSION, REMOVAL AND INSTALLATION
.

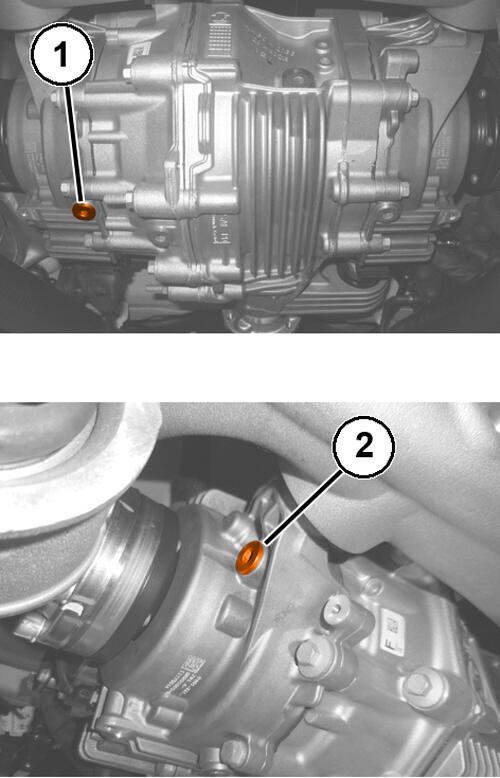

- Remove the Rear Drive Unit (RDU) left body drain plug (1) and drain the RDU left body fluid.
- Clean and install the RDU left body drain plug (1) tighten to the proper specification. Refer to TORQUE SPECIFICATIONS .
- Remove the RDU left body fill plug (2).
- Fill the RDU left body with the specified fluid and amount. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
- Clean the RDU left body fill plug (2), install and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS .
- Install the rear under body protection. Refer to BELLY PAN, REAR SUSPENSION, REMOVAL AND INSTALLATION .
- Remove the support and lower the vehicle.
