Drive Shaft - Front

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

   Index mark the drive shaft to transfer case for installation purposes.

   Courtesy of CHRYSLER GROUP, LLC

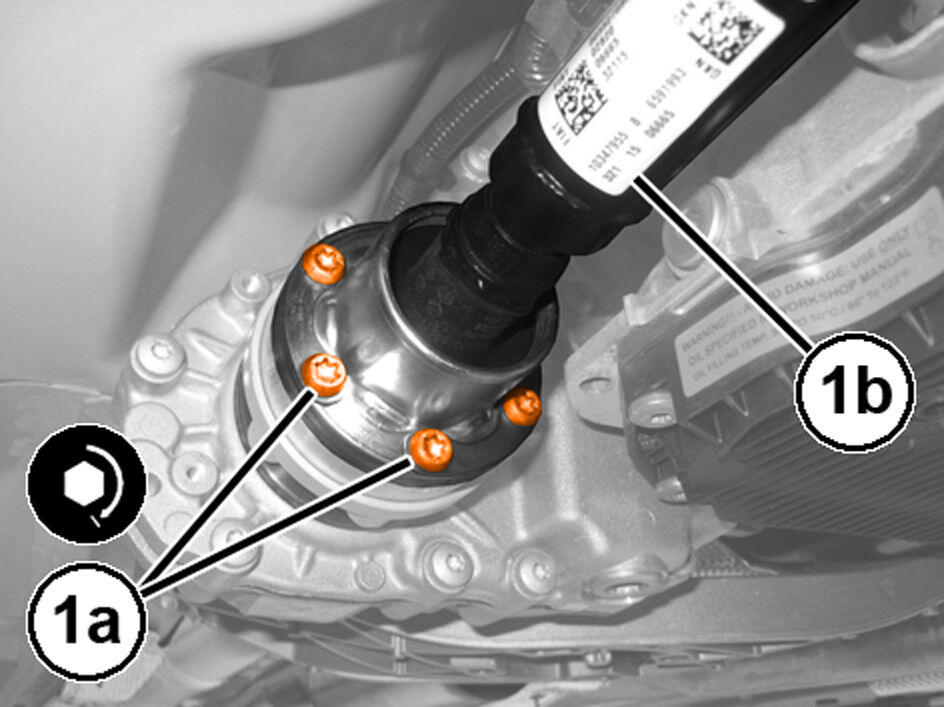

2. Remove and DISCARD  the front drive shaft (1b) to transfer case bolts (1a).

   Courtesy of CHRYSLER GROUP, LLC

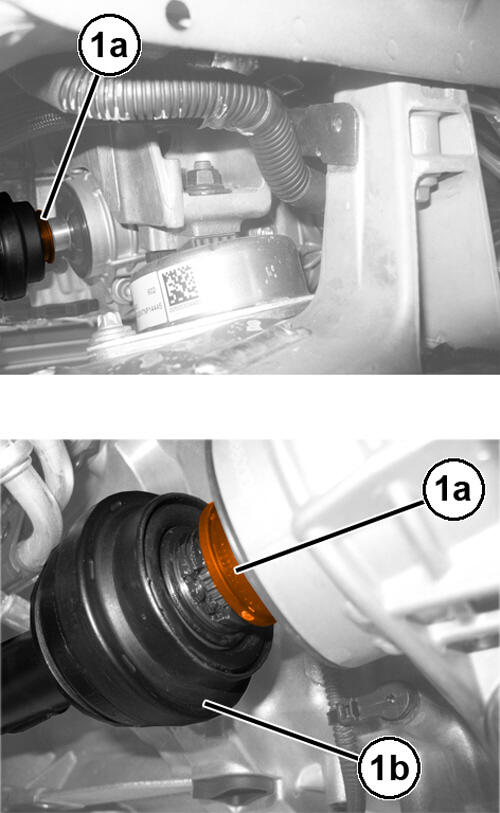

3. Release the dust seal ring (1a) from the front drive shaft (1b).

   Courtesy of CHRYSLER GROUP, LLC

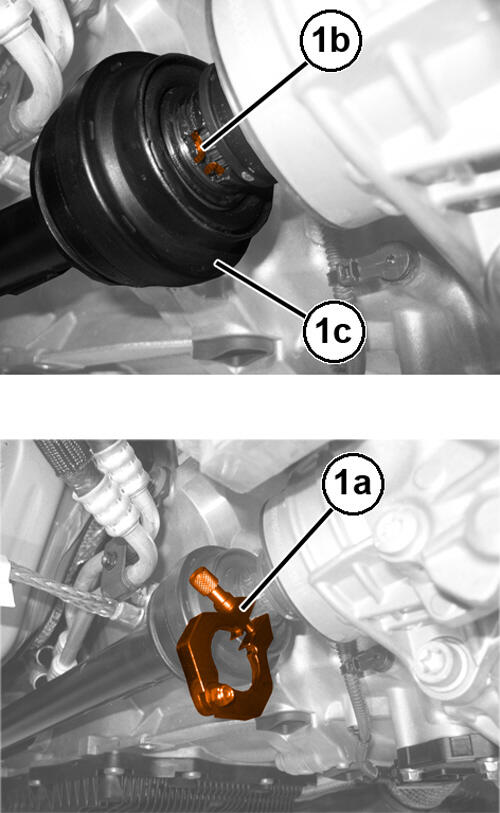

4. Release the circlip (1b) locking the front drive shaft (1c).

   Courtesy of CHRYSLER GROUP, LLC

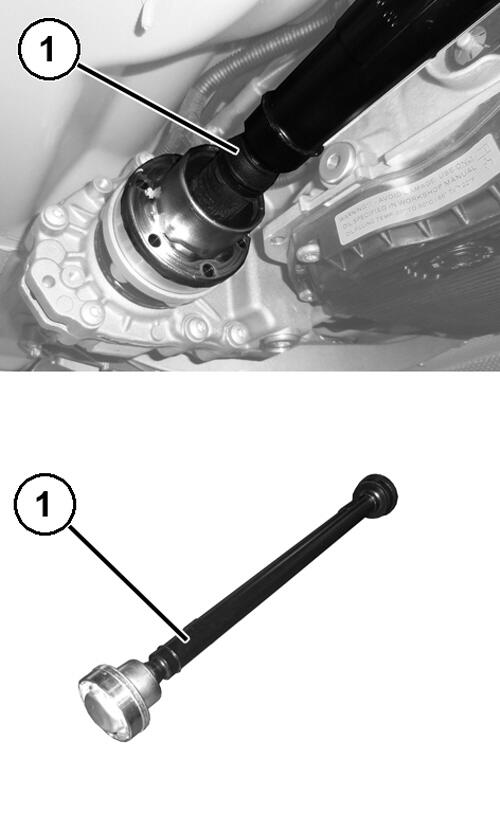

5. Remove the front drive shaft (1).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Install the front drive shaft (1) in the vehicle and align the index marks made during removal.

   Courtesy of CHRYSLER GROUP, LLC

2. Engage the circlip (1b) locking the front drive shaft (1c) to the front axle.

   Courtesy of CHRYSLER GROUP, LLC

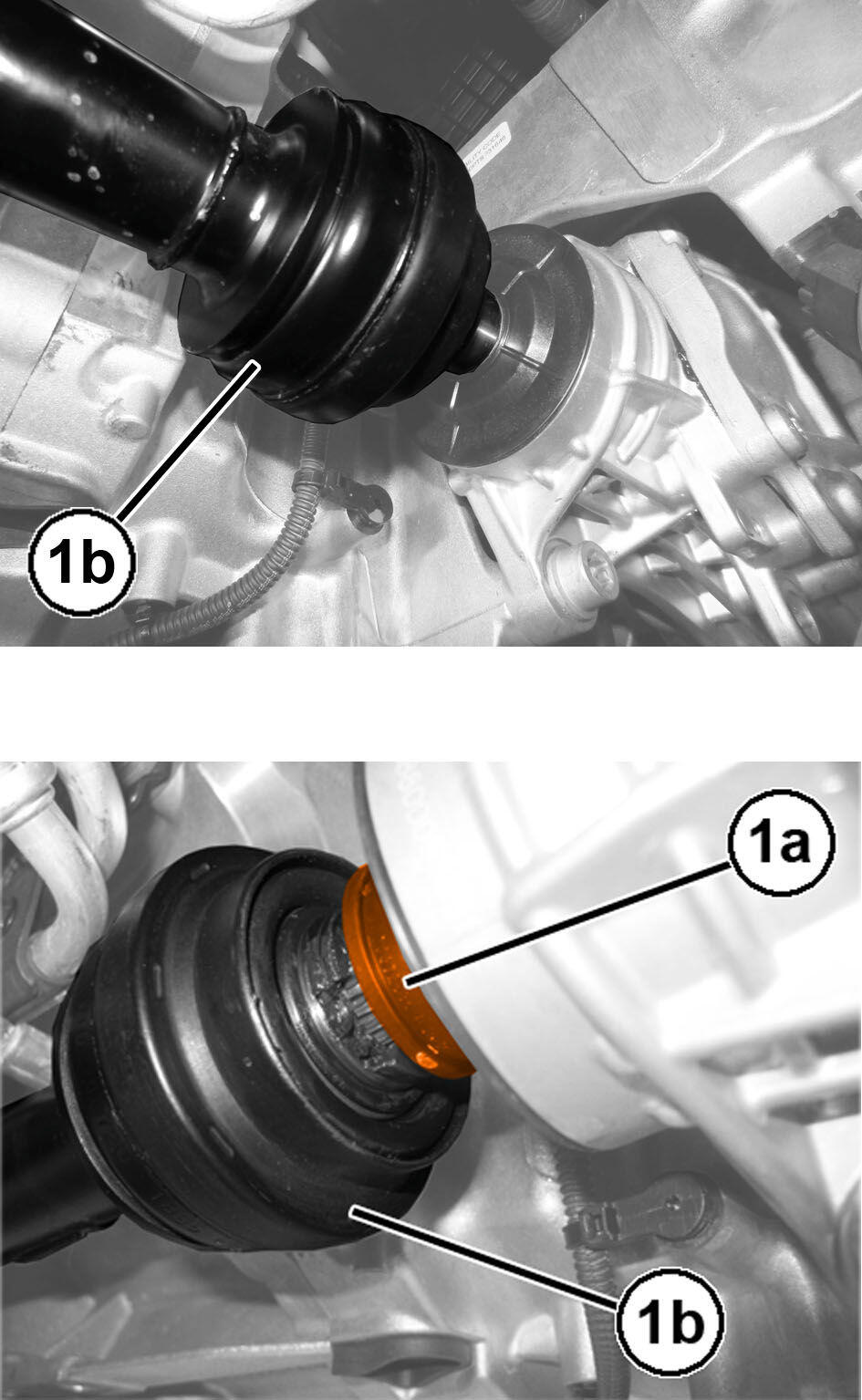

3. Install the dust seal (1a) to the front drive shaft (1b).

   Courtesy of CHRYSLER GROUP, LLC

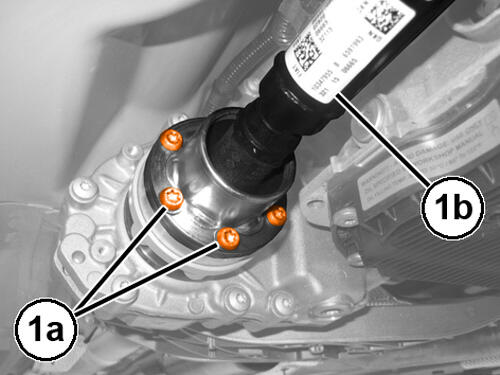

4. Install the front drive shaft (1b) to transfer case bolts (1a) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
5. Remove the support and lower the vehicle.
