Description And Operation
WARNING: This page is about a different variant/trim than selected.
 Courtesy of CHRYSLER GROUP, LLC
|

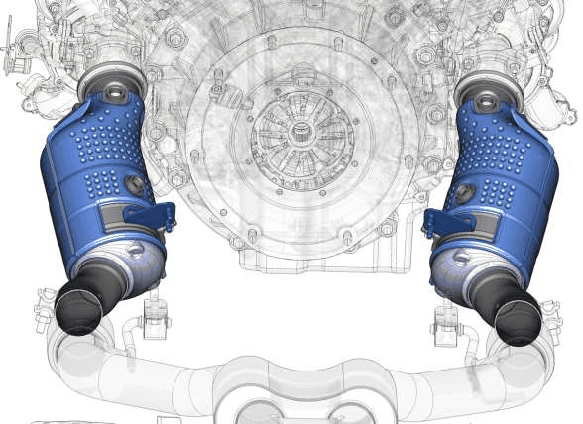

The catalysts used to combat polluting agents are monolithic beehive type.
 Courtesy of CHRYSLER GROUP, LLC
|

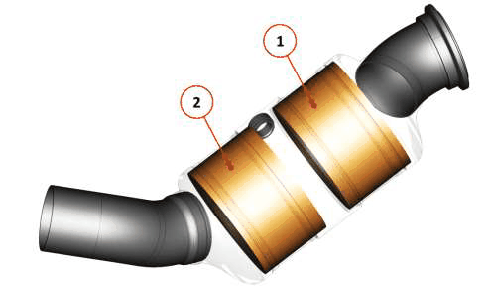

The pre-catalytic converter (1) and catalytic converter (2) are encased in a single metal shell. The downstream oxygen sensor is located after the pre-catalytic converter.
- 1 - Pre-catalytic converter
- 2 - Catalytic converter.
