Catalytic Converter Mounting Bracket

REMOVAL

1. Remove the catalytic converter. Refer to CONVERTER, CATALYTIC, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

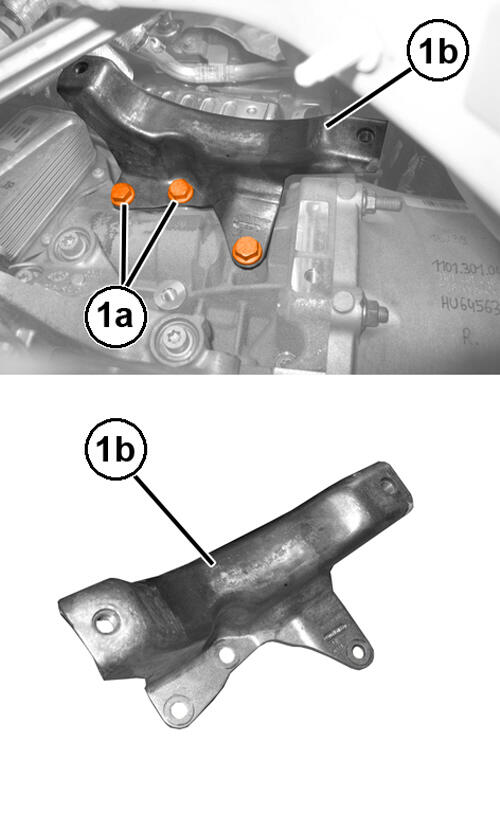

2. Remove the three bolts (1a) and the catalytic converter mounting bracket (1b).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

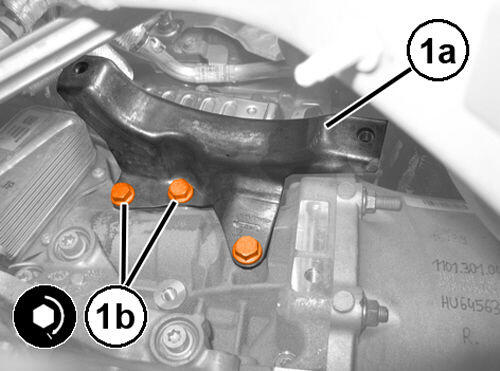

1. Install the catalytic converter mounting bracket (1a) and tighten the three bolts (1b) to the proper specification.. Refer to TORQUE SPECIFICATIONS  .
2. Install the catalytic converter. Refer to CONVERTER, CATALYTIC, REMOVAL AND INSTALLATION .
