Heat Shield Between Exhaust Pipe And Boot/Floor

REMOVAL

1. Remove the rear muffler heat shield. Refer to SHIELD, HEAT, REMOVAL AND INSTALLATION

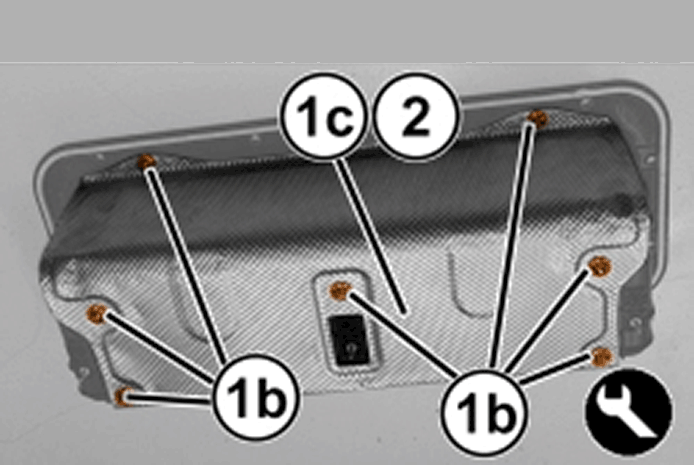

   Courtesy of CHRYSLER GROUP, LLC

2. Remove the fasteners (1b) and the bracket.
3. Remove the heat shield (1c).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Check that the heat shield (1c) is not damaged.
2. Install the heat shield (1c).
3. Install the bracket and the heat shield fasteners (1b).
4. Install the rear muffler heat shield. Refer to SHIELD, HEAT, REMOVAL AND INSTALLATION
