Exhaust Muffler

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the rear underbody side protection. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION or BELLY PAN, REAR, REMOVAL AND INSTALLATION or BELLY PAN, REAR SUSPENSION, REMOVAL AND INSTALLATION or BELLY PAN, SIDE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

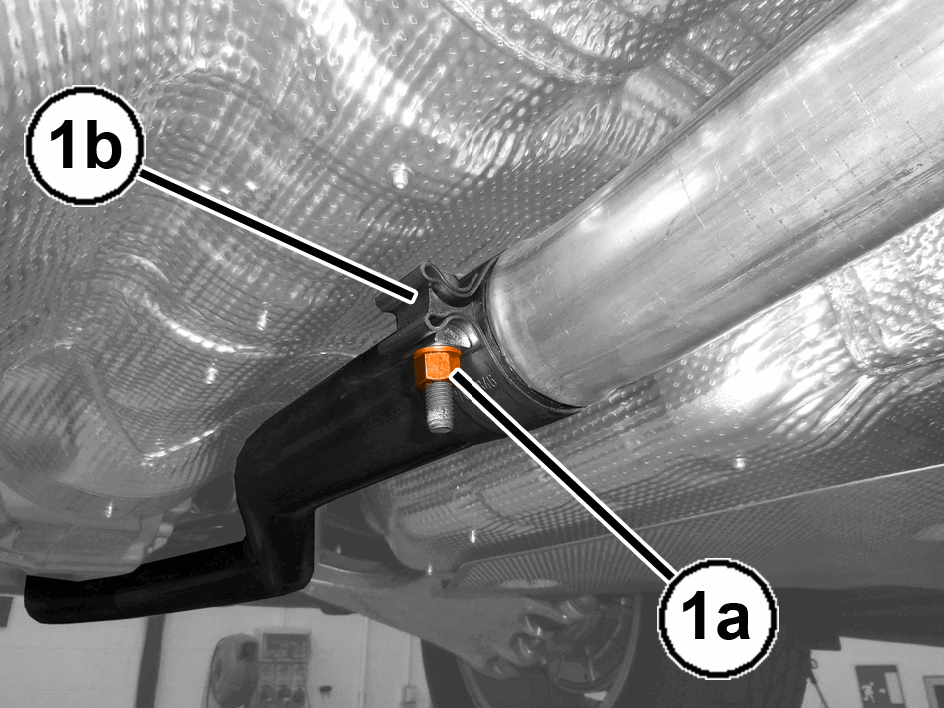

3. Loosen the nut (1a) and the rear exhaust pipe clamp (1b).

   Courtesy of CHRYSLER GROUP, LLC

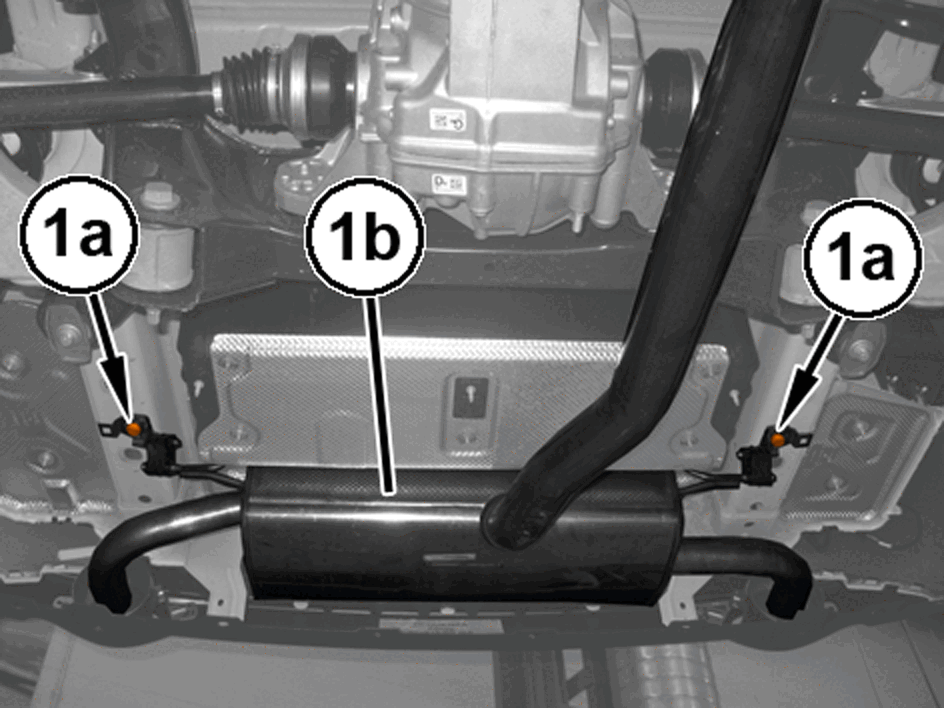

4. Remove the bolts (1a) securing the rear exhaust muffler mounting brackets (1b) to the body.

   Courtesy of CHRYSLER GROUP, LLC

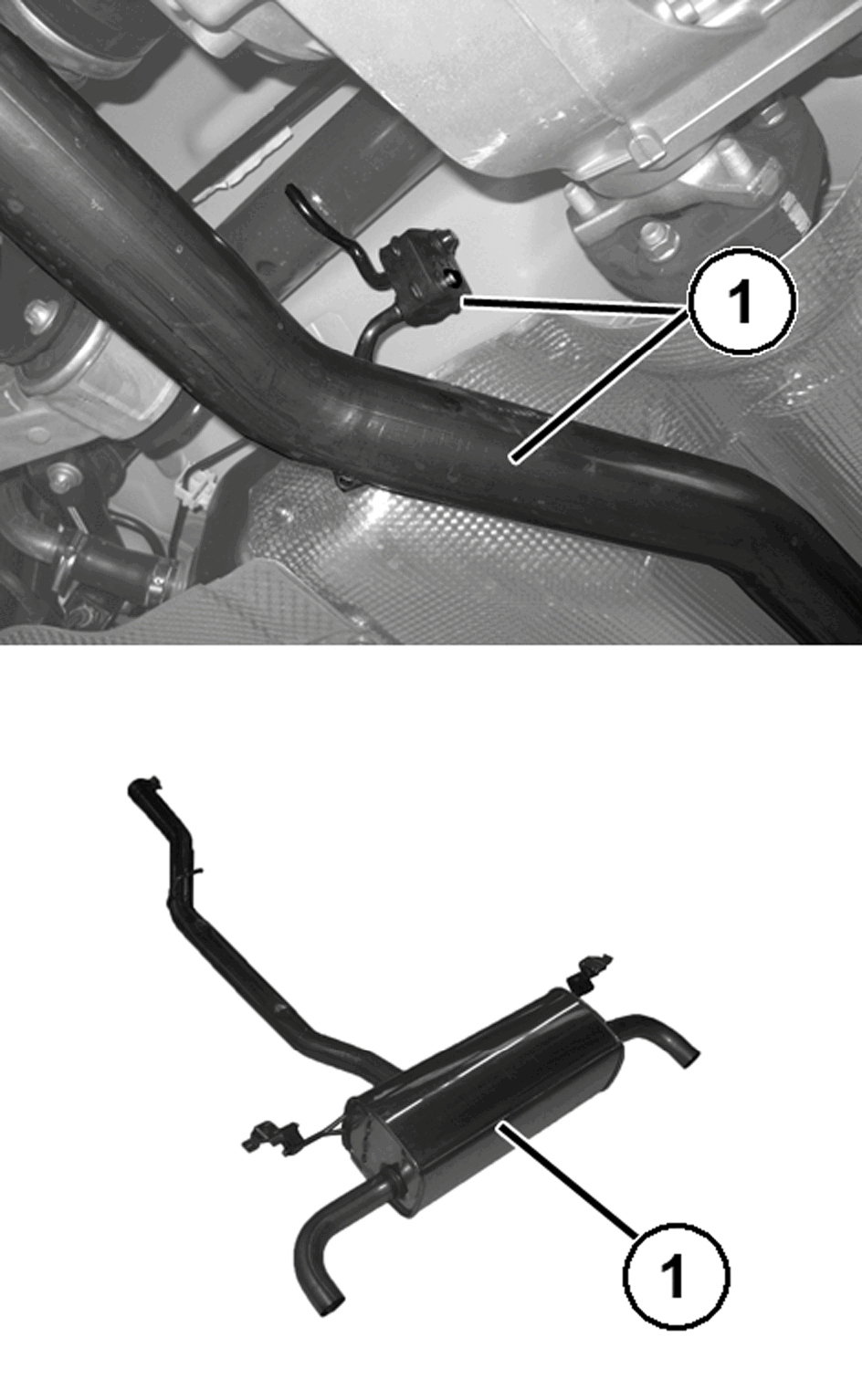

5. Release the exhaust pipe from the isolator mount (1) and remove the rear exhaust muffler.

INSTALLATION

1. Install the rear exhaust muffler and engage the exhaust pipe to the isolator mount.

   Courtesy of CHRYSLER GROUP, LLC

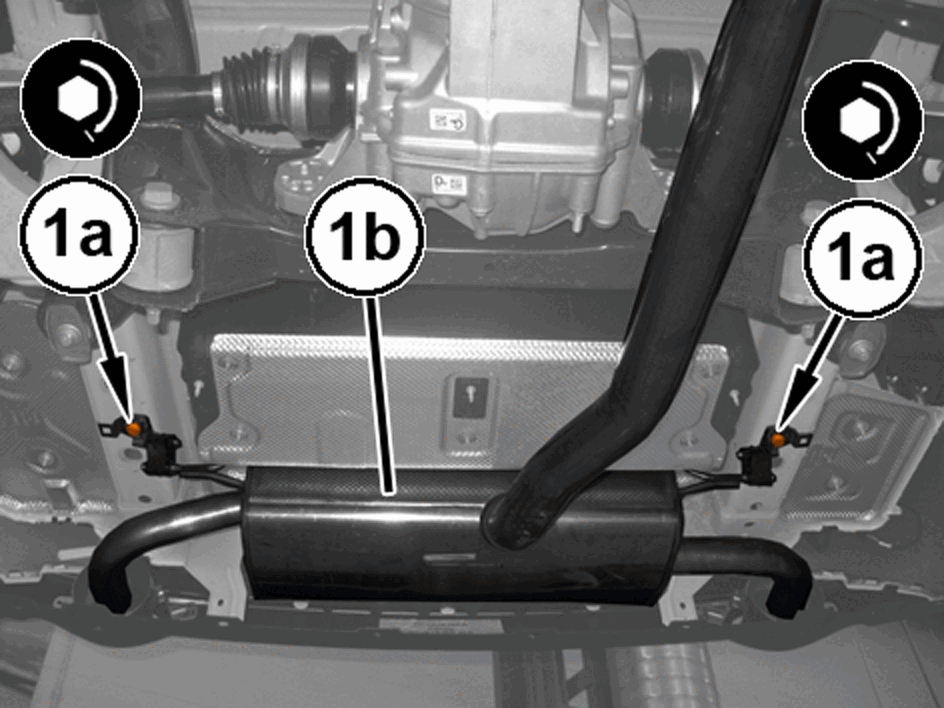

2. Install the bolts (1a) securing the rear exhaust muffler mounting brackets (1b) to the body and tighten to the proper specification.. Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

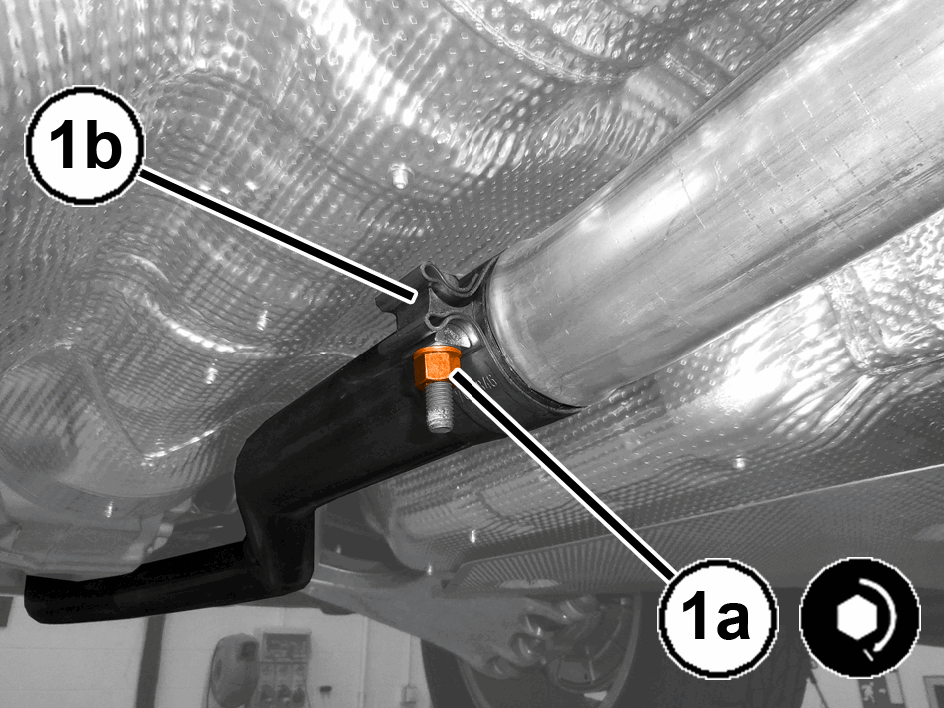

3. Tighten the nut (1a) securing the collar (1b) to the proper specification.. Refer to TORQUE SPECIFICATIONS  .
4. Install the rear underbody side protection. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION or BELLY PAN, REAR, REMOVAL AND INSTALLATION or BELLY PAN, REAR SUSPENSION, REMOVAL AND INSTALLATION or BELLY PAN, SIDE, REMOVAL AND INSTALLATION .
5. Remove the support and lower the vehicle.
