Right Boost Pressure Sensor

REMOVAL

1. Disconnect and isolate the negative battery cable.

   Courtesy of CHRYSLER GROUP, LLC

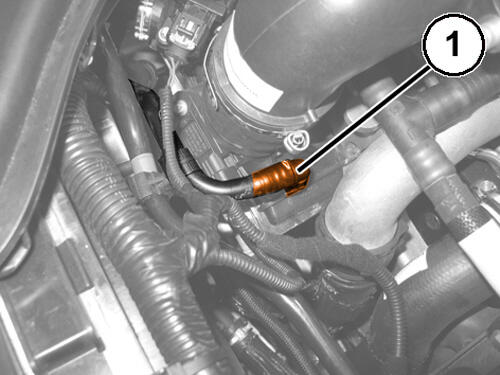

2. Disconnect the quick connector tube (1) between charge air water cooler and right turbocharger intake on the charge air water cooler side.

   Courtesy of CHRYSLER GROUP, LLC

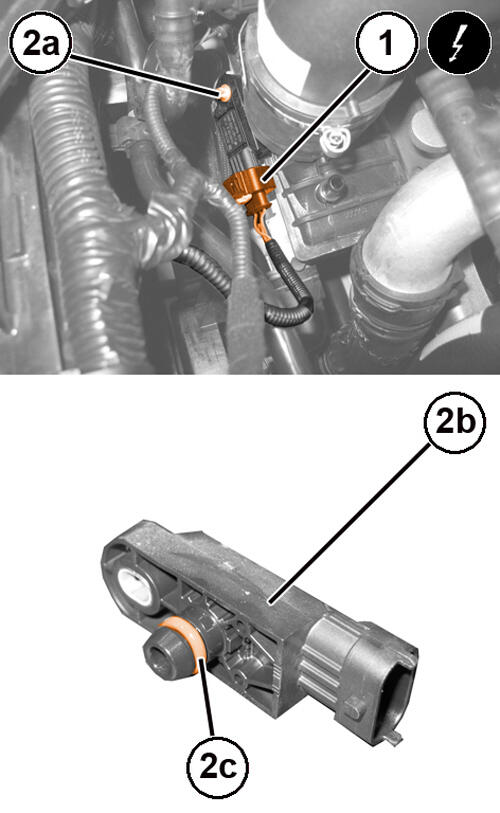

3. Disconnect the right boost pressure sensor wire harness connector (1).
4. Remove the screw (2a) and right boost pressure sensor (2b) complete with O-ring (2c).

INSTALLATION

1. Install the right boost pressure sensor with O-ring and securely tighten the screw.
2. Connect the right boost pressure sensor wire harness connector.
3. Connect the quick connector tube (1) between charge air water cooler and right turbocharger intake on the charge air water cooler side.
4. Connect the negative battery cable.
