Clutch A Measurement

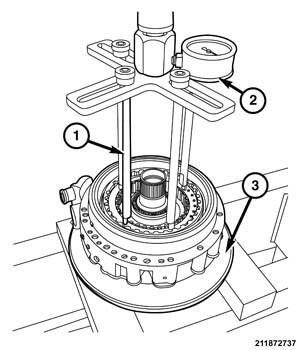

- Using (special tool #10428, Adapter, Pressing Tool) (1) and (special tool #10429, Gauge, Force) (2) Place the A-clutch/oil pump assembly in a suitable arbor press.
- Apply 200 N (45 lbs.) of force to the A-clutch backing plate to compress the wave plate.

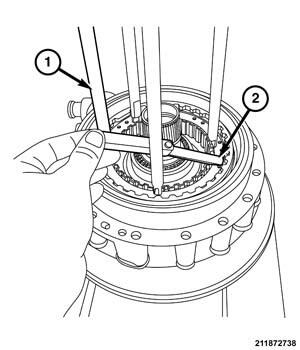

- With a suitable feeler gauge (2) measure the gap between the A-clutch backing plate and the snap ring.
- Refer to the clutch clearance table for specs. If clearance is not within specification, a thinner or thicker selectable snap ring can be installed for proper clearance.
