Removal And Installation

NOTE:

The transmission shifter is equipped with the Electronic Shift Module (ESM). If transmission shifter is being replaced with a new unit, use a diagnostic scan tool to perform the Flash Programming

REMOVAL

Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

Courtesy of CHRYSLER GROUP, LLC
Remove the shifter bezel (1b) using a trim stick tool or equivalent.
Remove the shifter bezel. Refer to BEZEL, SHIFTER, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

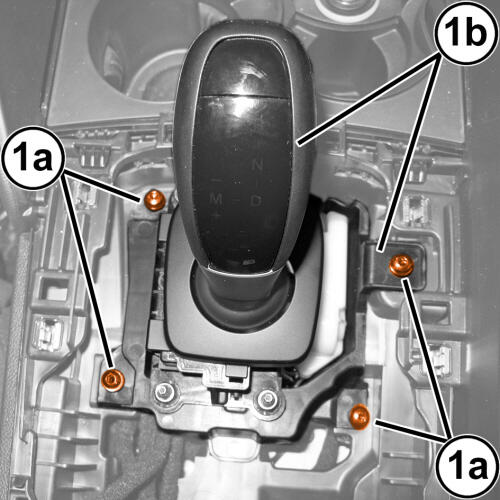

Remove the shifter mount bolts (1a) and remove the mount (1b) with the shifter (1b).

Courtesy of CHRYSLER GROUP, LLC

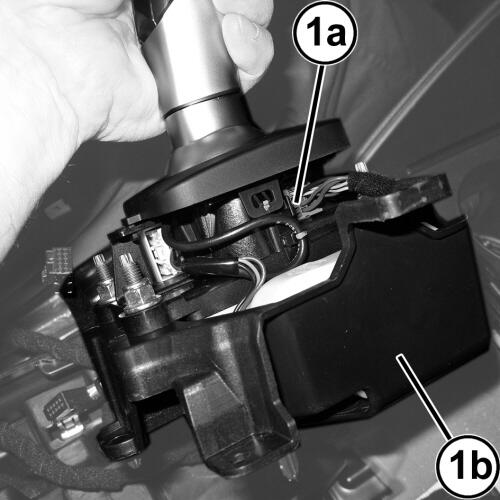

Disconnect the shifter wire harness connector (1a).
Remove the shifter and shifter mount from the vehicle.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

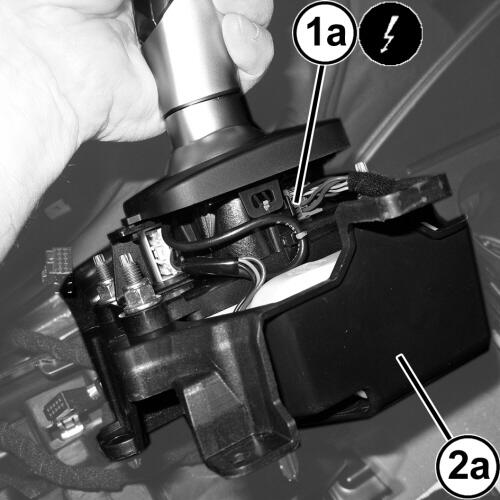

Connect the shifter wire harness connector (1a).

Courtesy of CHRYSLER GROUP, LLC

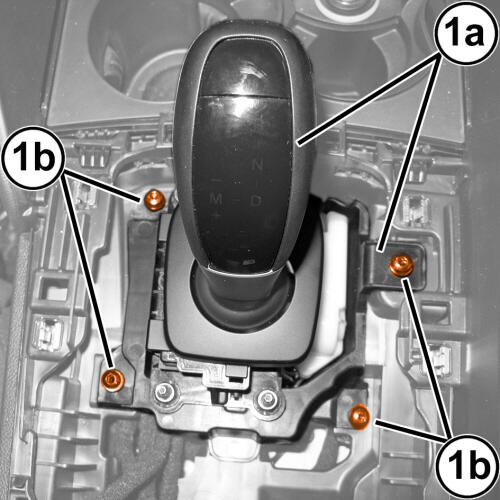

Place the shifter mount with shifter (1a) in position and tighten the shifter mount bolts (1b) to the proper. Refer to TORQUE SPECIFICATIONS .
Install the shifter bezel. Refer to BEZEL, SHIFTER, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC
Position the shifter bezel in position (1a) and engage the inner retainers (1b).
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
If this Electronic Control Unit (ECU) is being replaced with a new unit, use a diagnostic scan tool to perform the Flash Programming Procedure.
