Removal And Installation

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the drive shaft. Refer to REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

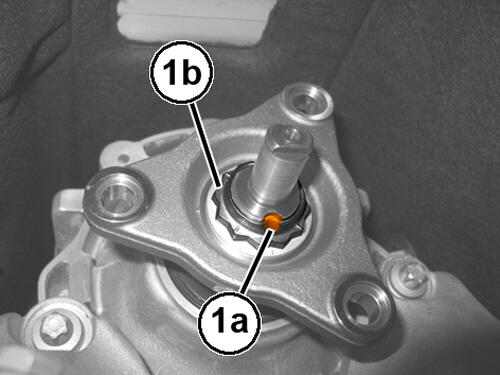

3. Remove the output shaft flange locknut (1b) staking (1a).

   Courtesy of CHRYSLER GROUP, LLC

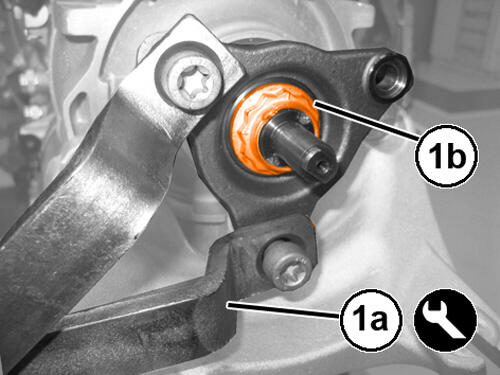

4. Using a flange holder (special tool #C-3281, Holder, Flange) (1a), remove the output shaft flange nut (1b).

   Courtesy of CHRYSLER GROUP, LLC

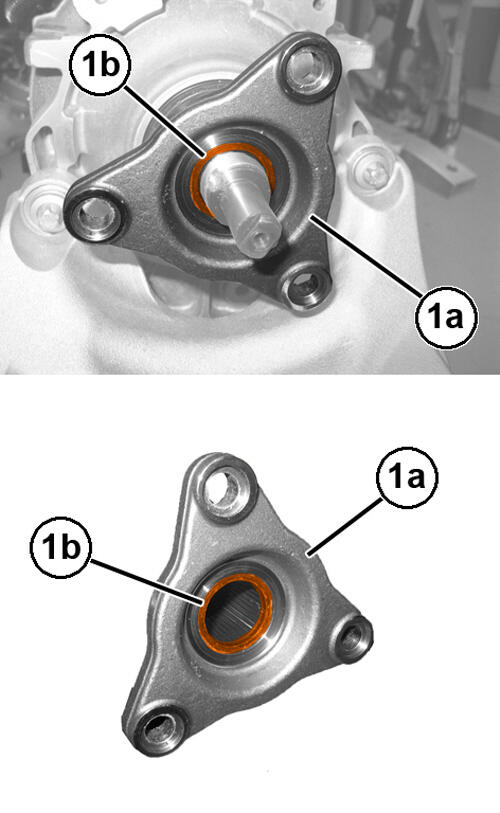

5. Remove the output shaft flange (1a) and inspect the output shaft flange sealing surface (1b) for damage, replace as needed.

   Courtesy of CHRYSLER GROUP, LLC

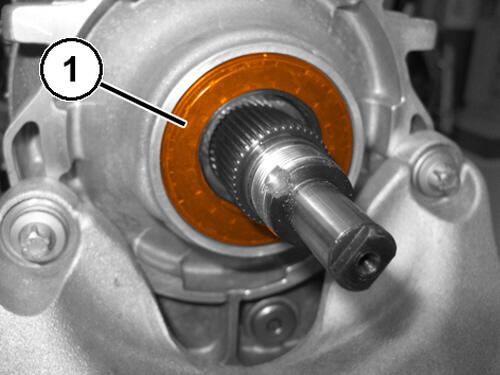

6. Remove and discard the output shaft seal (1).

INSTALLATION

1. Position the NEW  output shaft seal in place.

   Courtesy of CHRYSLER GROUP, LLC

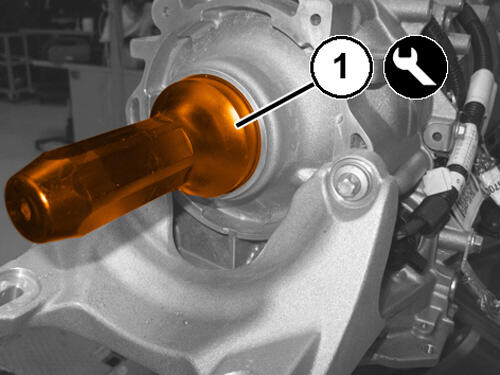

2. Using (special tool #9677, Installer, Seal) (1), install a new output shaft seal.

   Courtesy of CHRYSLER GROUP, LLC

3. Install the output shaft flange (1a).

   Courtesy of CHRYSLER GROUP, LLC

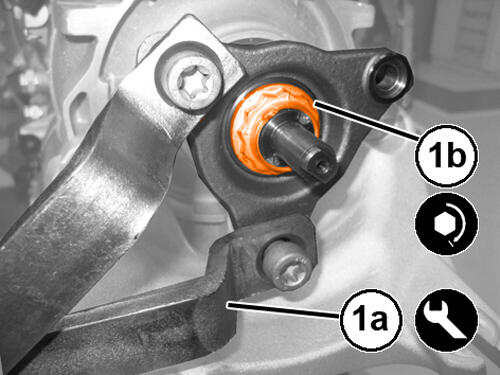

4. Using the output flange holding tool (1a) install the output shaft flange nut (1b) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
5. Install the drive shaft. Refer to REMOVAL AND INSTALLATION .
6. Check the transmission fluid and fill as needed. Refer to CHECK FLUID LEVEL  .
7. Remove the support and lower the vehicle.
