Removal And Installation

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the front drive shaft. Refer to REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

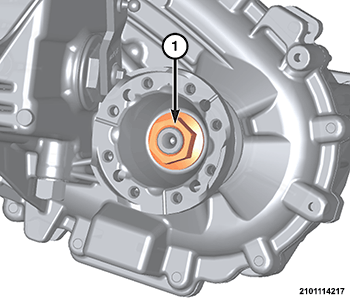

3. Remove the front output shaft flange nut (1).

   Courtesy of CHRYSLER GROUP, LLC

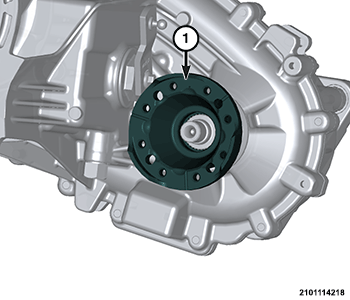

4. Remove the front output flange (1).

   Courtesy of CHRYSLER GROUP, LLC

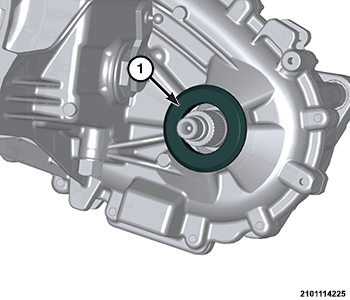

5. Remove and discard the front output shaft seal (1).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Install the NEW  front output shaft seal (1).

   Courtesy of CHRYSLER GROUP, LLC

2. Install the front output flange (1).

   Courtesy of CHRYSLER GROUP, LLC

3. Install the front output flange nut (1) and tighten to the proper Refer to TECHNICAL SPECIFICATIONS .
4. Install the front drive shaft. Refer to REMOVAL AND INSTALLATION .
5. Remove the support and lower the vehicle.
