Removal And Installation: Outer

REMOVAL

1. Disconnect and isolate the negative battery cable.

   Courtesy of CHRYSLER GROUP, LLC

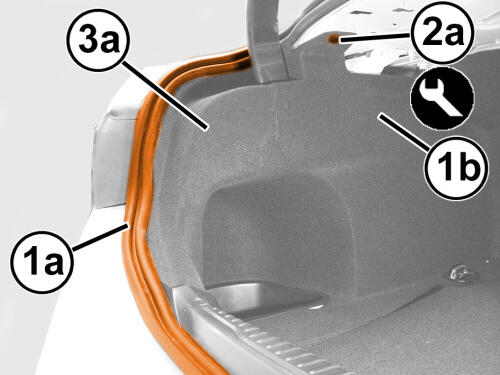

2. Reposition the luggage compartment weatherstrip seal (1a).
3. Using an appropriate tool, remove the retaining button (2a).
4. Reposition the edge (3a) of the side trim.

   Courtesy of CHRYSLER GROUP, LLC

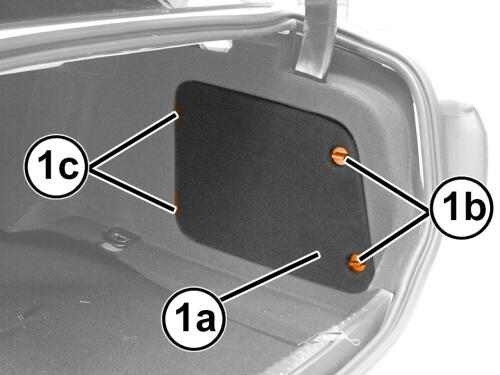

5. For the right side outer lamp only, turn and disengage the retainers (1a), then remove the lid (1b) by disengaging the retainers (1c).

   Courtesy of CHRYSLER GROUP, LLC

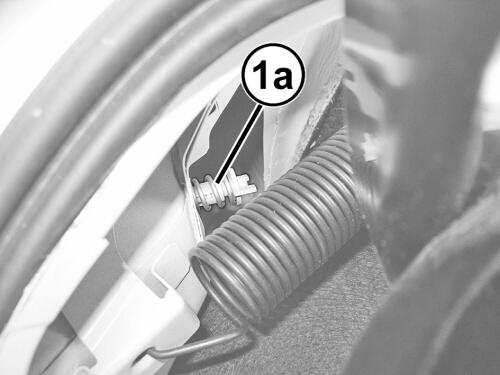

6. For both the left and right side, remove the fastener (1a) securing the tail lamp.

   Courtesy of CHRYSLER GROUP, LLC

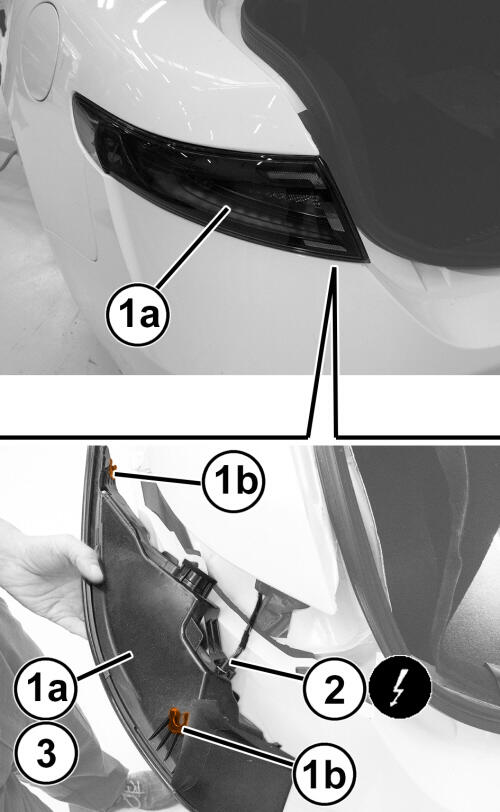

7. Pull the lamp outward (1a) allowing the inner retainers to disengage (1b).
8. Disconnect the wiring harness connector (2) from the lamp.
9. Remove the lamp.

INSTALLATION

1. Position the lamp to the vehicle for installation.

   Courtesy of CHRYSLER GROUP, LLC

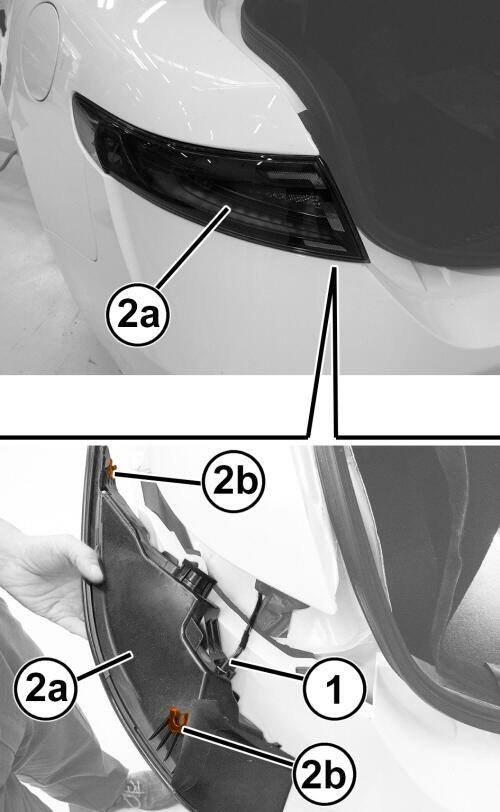

2. Connect the wiring harness connector (1) to the lamp.
3. Position the light (2a) and engage the inner retainers (2b).

   Courtesy of CHRYSLER GROUP, LLC

4. Install the lamp fastener (1a).

   Courtesy of CHRYSLER GROUP, LLC

5. For the right side lamp, position the lid and engage all retainers (1b and 1c).
6. For the left side lamp,

   Courtesy of CHRYSLER GROUP, LLC

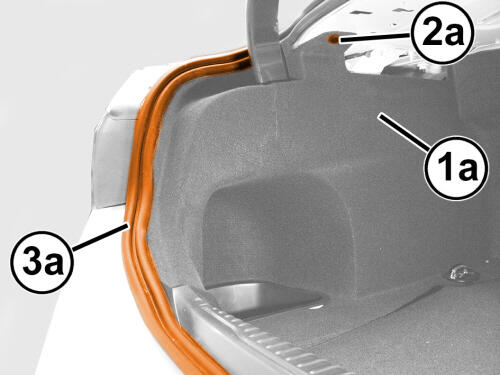

7. Position the side lining (1a) back to the installed position.
8. Install the retaining button (2a).
9. Engage the weatherstrip seal (3a).
10. Connect the negative battery cable.
