Turn Signal Bulb

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to STANDARD PROCEDURE .

   Courtesy of CHRYSLER GROUP, LLC

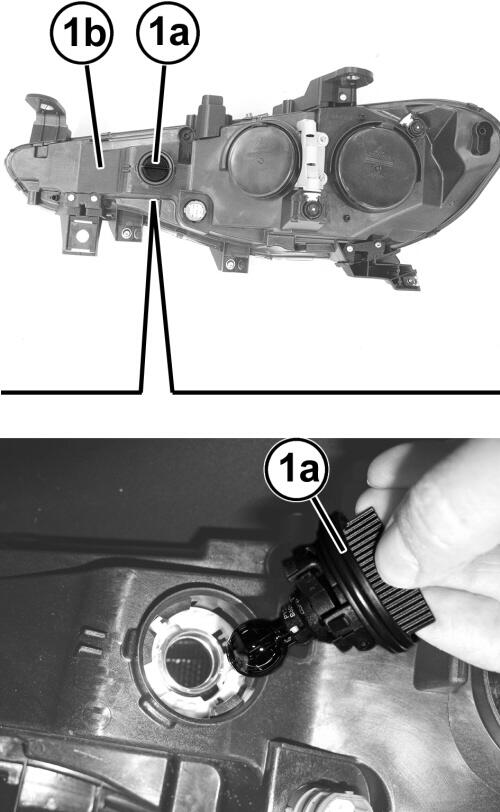

2. Turn the bulb socket (1a) counter-clockwise to remove it from the front lamp unit housing (1b).

   Courtesy of CHRYSLER GROUP, LLC

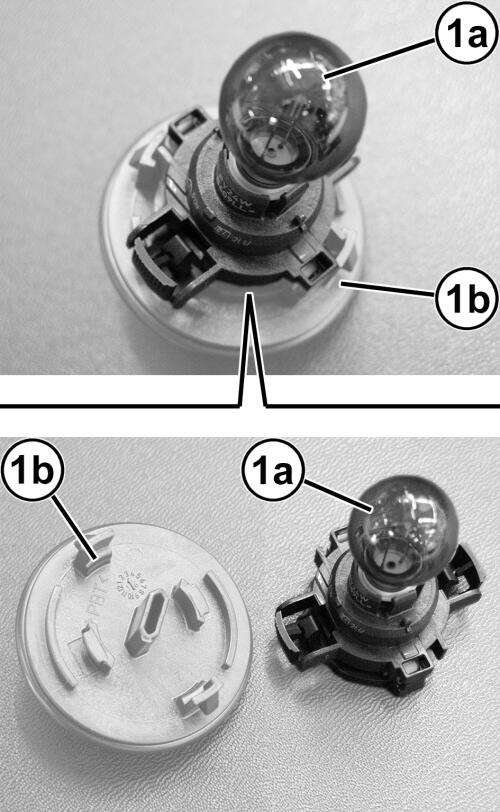

3. If replacing the bulb (1a), rotate the bulb counter clockwise to remove it from the bulb socket (1b).

INSTALLATION

1. Check the bulb, bulb socket and wire harness integrity.

   Courtesy of CHRYSLER GROUP, LLC

2. If the turn signal bulb was removed, position the bulb (1a) to the bulb socket (1b) and rotate clockwise until secure in the socket.

   Courtesy of CHRYSLER GROUP, LLC

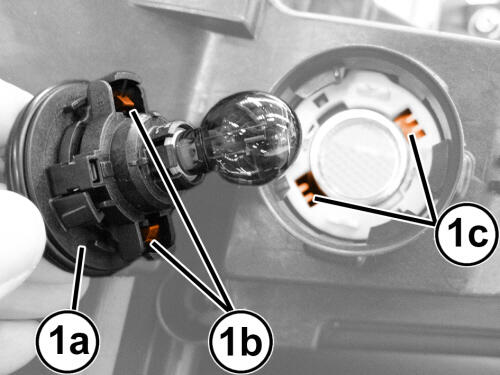

3. Position the bulb socket (1a) retainers (1b) to the front lamp housing retainers (1c).
4. Once the bulb socket and front lamp unit are aligned, rotate clockwise until secure in the housing.
5. Connect the negative battery cable(s). Refer to STANDARD PROCEDURE .
