Front Lamp Unit

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

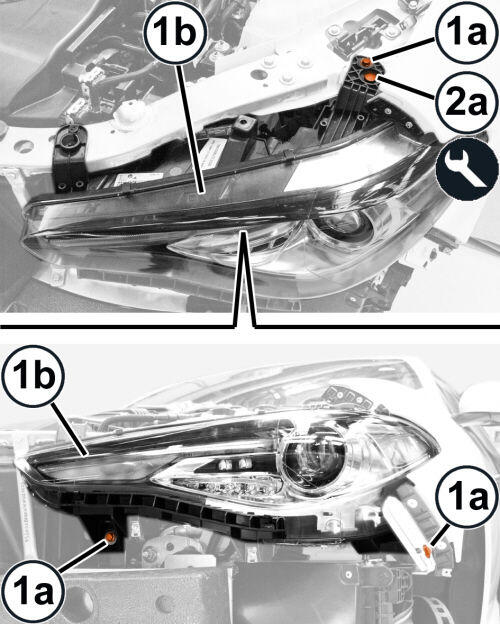

3. Remove the fasteners (1a) securing the front lamp unit (1b).
4. Using a suitable trim stick or equivalent, remove the hold down pins (2a).

   Courtesy of CHRYSLER GROUP, LLC

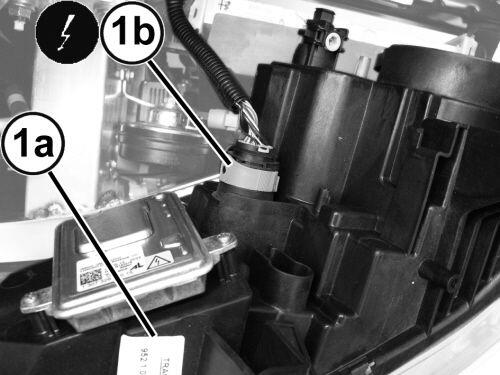

5. Move the front lamp unit (1a) forwards to gain access to the wire harness connector.
6. Disconnect the wire harness connector (1b).

INSTALLATION

1. Connect the wire harness connector to the front lamp unit.
2. Position the front lamp unit to its installed position.
3. Install the hold down pins.
4. Install and securely tighten the fasteners securing the front lamp unit to the body.
5. Install the fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
6. Connect the negative battery cable.
7. Perform the headlamp alignment procedure. Refer to STANDARD PROCEDURE .
