Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

Disconnect and isolate the negative battery cable.
Remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC
Remove the bolts (1a, 1b) and the belt tensioner (1c).

INSTALLATION

GC0198226

Courtesy of CHRYSLER GROUP, LLC

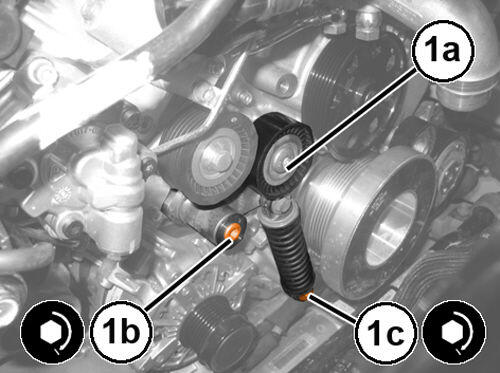

Install the belt tensioner (1a) and tighten the upper bolt (1b) first and then the lower bolt (1c) to the proper specification. Refer to TORQUE SPECIFICATIONS GAS ENGINE .
Install the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .
Connect the negative battery cable.
