Right Idler Pulley

WARNING: This page is about a different variant/trim than selected.

REMOVAL

Remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

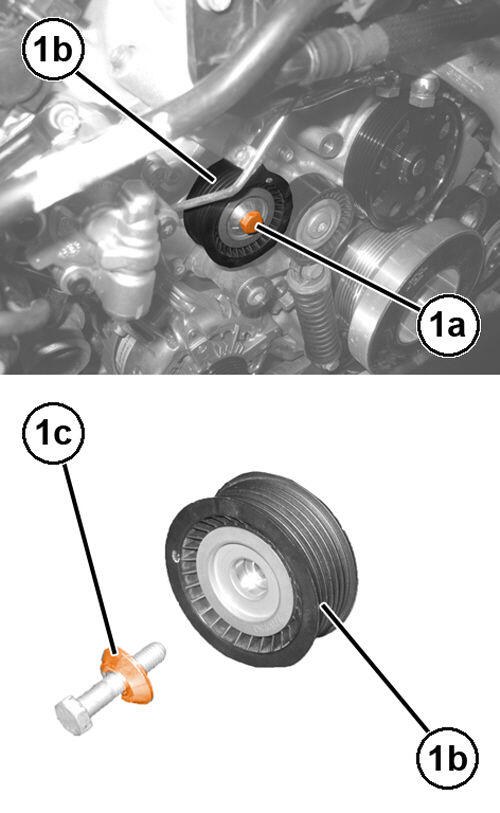

Remove the bolt (1a) and the right idler pulley (1b) with the conical washer (1c).

INSTALLATION

GC0198196

Courtesy of CHRYSLER GROUP, LLC

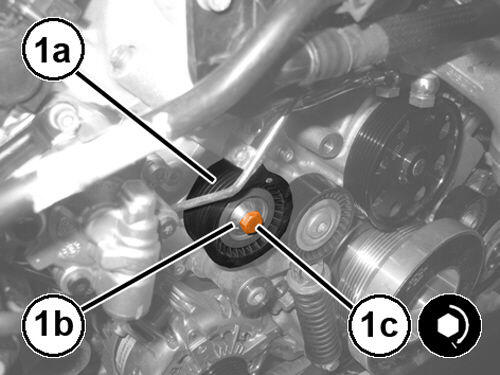

Install the right idler pulley (1a) with the conical washer (1b) and tighten the bolt (1c) to the proper specification. Refer to TORQUE SPECIFICATIONS GAS ENGINE .
Install the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .
