Left Idler Pulley

WARNING: This page is about a different variant/trim than selected.

REMOVAL

Remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

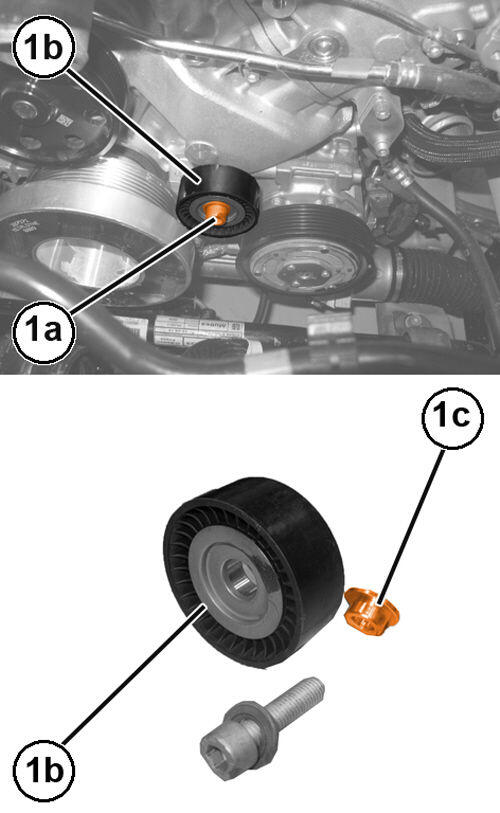

Remove the bolt (1a) and the left idler pulley (1b) with the conical washer (1c).

INSTALLATION

GC0198181

Courtesy of CHRYSLER GROUP, LLC

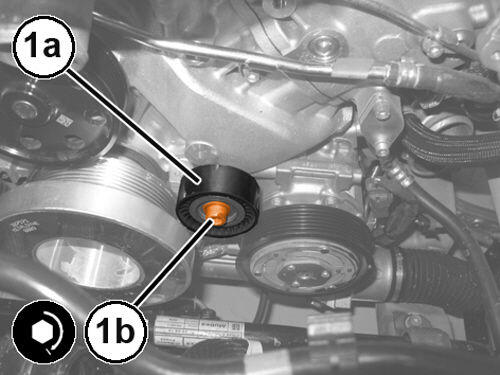

Install the left idler pulley (1a) with the conical washer (1b) and tighten the screw (1c) to the proper specification. Refer to TORQUE SPECIFICATIONS GAS ENGINE .
Install the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .
