Primary Water Pump

WARNING: This page is about a different variant/trim than selected.

REMOVAL

Remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

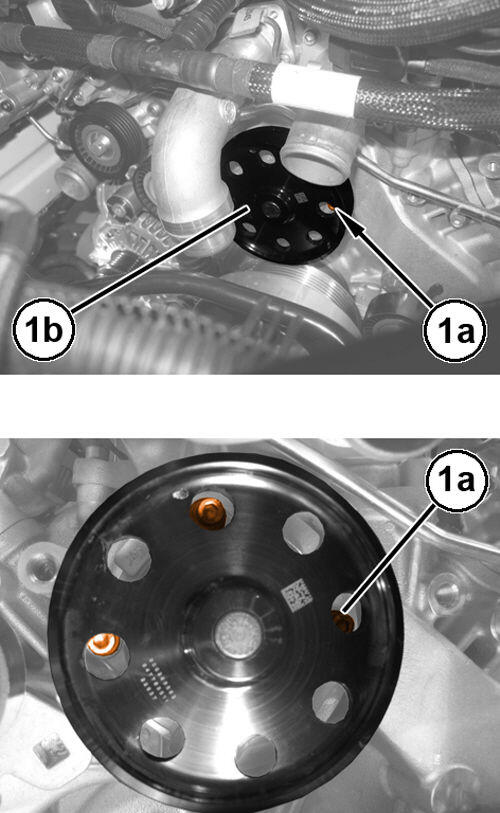

Working through the pulley holes, remove the bolts (1a) and the water pump (1b).

Courtesy of CHRYSLER GROUP, LLC

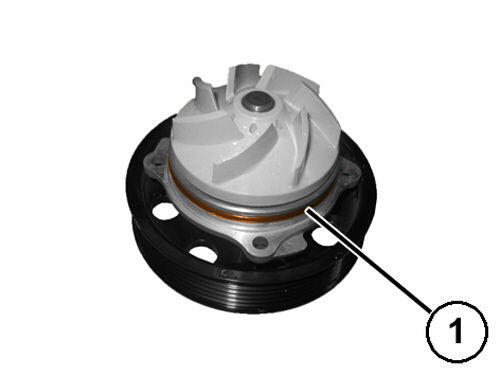

Replace the water pump O-ring (1).

INSTALLATION

Install a NEW O-ring seal onto the water pump.
Install the water pump and securely tightening the bolts.
Install the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .
