Ht Coolant Temperature Sensor
WARNING: This page is about a different variant/trim than selected.
REMOVAL
- Remove the left intake manifold. Refer to MANIFOLD, INTAKE, REMOVAL AND INSTALLATION
.

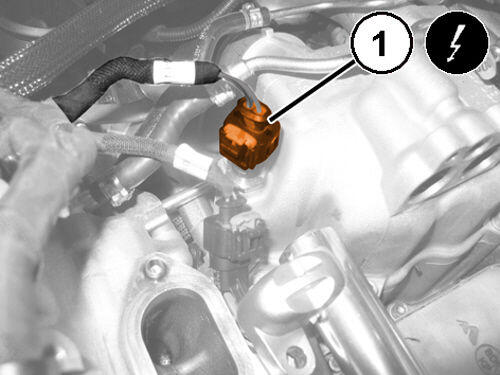

- Disconnect the coolant temperature sensor wire harness connector (1).

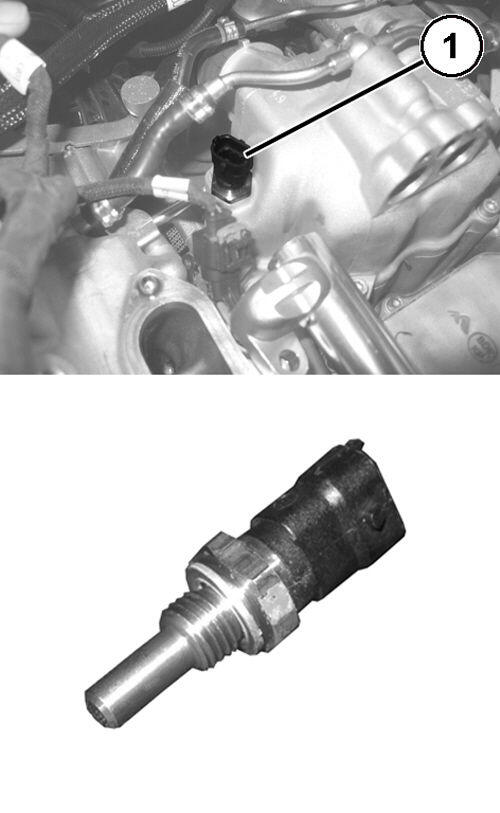

- Remove the coolant temperature sensor (1).
INSTALLATION

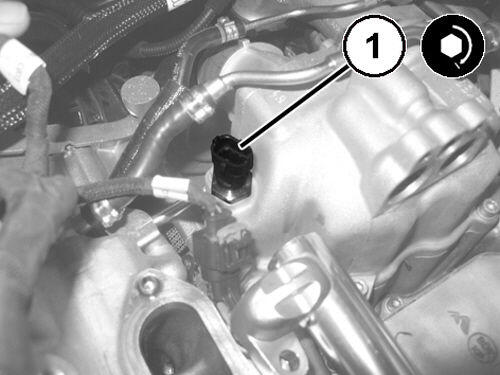

- Install the coolant temperature sensor (1) and tighten it to the proper specification. Refer to TORQUE SPECIFICATIONS GAS ENGINE .
- Connect the coolant temperature sensor wire harness connector.
- Install the left intake manifold. Refer to MANIFOLD, INTAKE, REMOVAL AND INSTALLATION .
