Actuator-Electric Parking Brake - Right Rear (2.0L/2.2L) Connector End View (D2819A)

Harness-Family: EPB_Right_Jumper

Color: NATURAL

Gender: FEMALE

Part Number: 805-198-522

Part Description: Not Available

Connector No: D2819A

Option: 2.0L/2.2L

Repair Kit Part Number: Not Available

Cavity Count: null

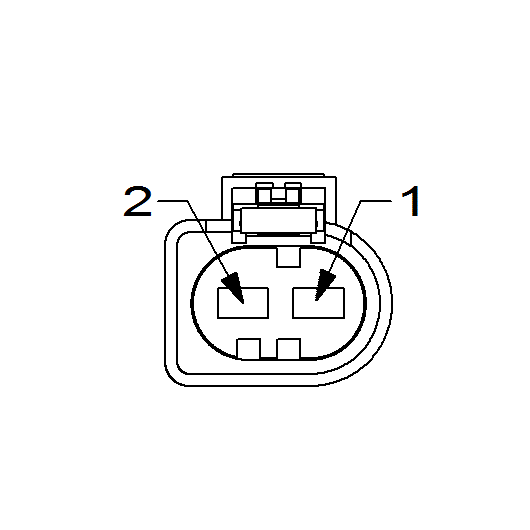

Fig 1: Actuator-Electric Parking Brake - Right Rear Connector End View (2.0L/2.2L)

Courtesy of CHRYSLER

Fig 2: Actuator-Electric Parking Brake - Right Rear Component Location (2.0L/2.2L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

B64

2.5

RIGHT EPB ACTUATOR A CONTROL

2.0L/2.2L

B66

WH/BK

2.5

RIGHT EPB ACTUATOR B CONTROL

2.0L/2.2L

⁽¹⁾	Pins not listed are not used for this connector
