Floor Console

REMOVAL

1. Disconnect and isolate the negative battery cable.

   Courtesy of CHRYSLER GROUP, LLC

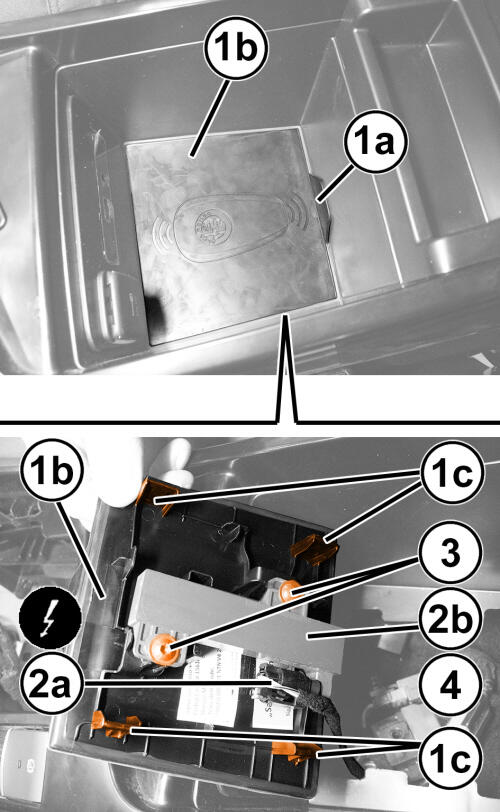

2. Grip the edge (1a) and pull the storage bin panel (1b) up, releasing its internal retainers (1c) from the floor console base.
3. Working on the bottom side of the storage bin panel, disconnect the wiring harness connector (2a) from the Low Frequency (LF) antenna (2b).
4. Remove the LF antenna retaining screws (3).
5. Remove the LF antenna.

INSTALLATION

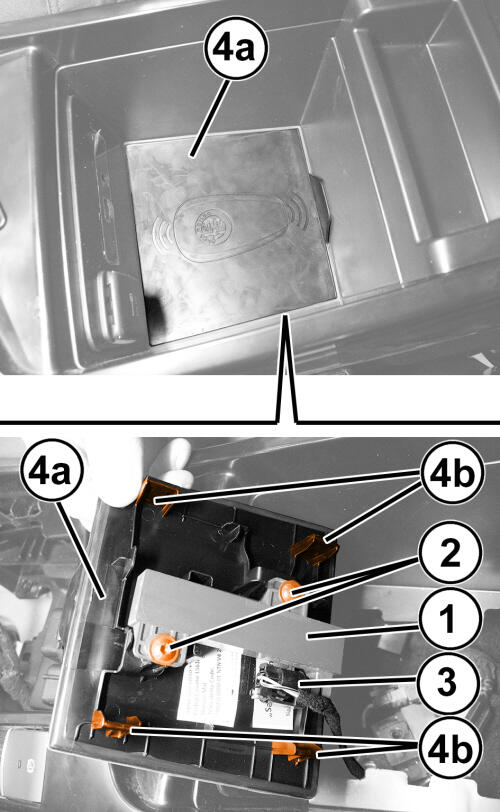

1. Position the LF antenna to the storage bin liner for installation.

   Courtesy of CHRYSLER GROUP, LLC

2. Install the screws (2) and secure the LF antenna (1) to the storage bin panel.
3. Connect the wiring harness connector (3) to the LF antenna (1).
4. Install the storage bin panel (4a) and secure all the retainers (4b).
5. Connect the negative battery cable.
