Rear CROSSMEMBER

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the rear fascia. Refer to FASCIA, REAR, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

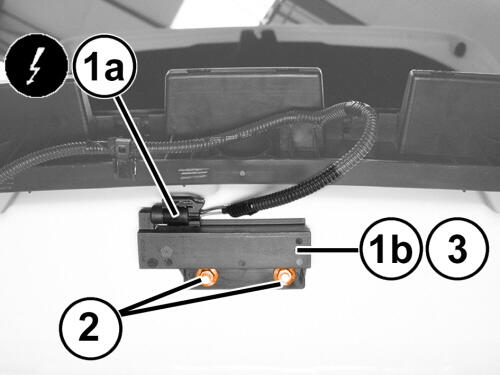

3. Disconnect the wiring harness connector (1a) from the Low Frequency (LF) antenna (1b).
4. Remove the LF antenna retaining nuts (2).
5. Remove the LF antenna (1b).

INSTALLATION

1. Position the LF antenna to the vehicle for installation.

   Courtesy of CHRYSLER GROUP, LLC

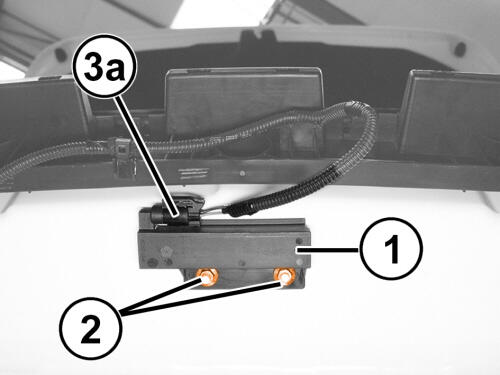

2. Using nuts (2), secure the LF antenna (1).
3. Connect the wiring harness connector (3a) to the LF antenna.
4. Install the rear fascia. Refer to FASCIA, REAR, LOWER, REMOVAL AND INSTALLATION .
5. Connect the negative battery cable.
