Rear Door

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the door panel. Refer to PANEL, REAR DOOR TRIM, REMOVAL AND INSTALLATION Refer to, PANEL, REAR DOOR TRIM, REFLECTOR, REMOVAL AND INSTALLATION Refer to, PANEL, REAR DOOR TRIM, UPPER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

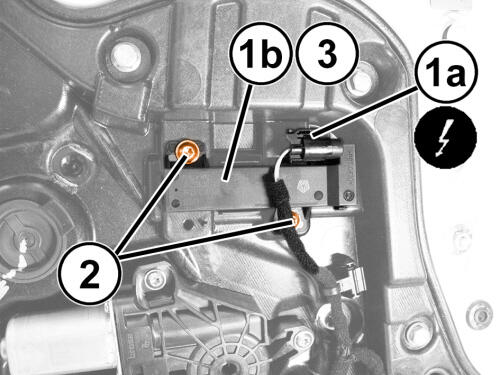

3. Disconnect the wiring harness connector (1a) from the Low Frequency (LF) antenna (1b).
4. Remove the screws (2) securing the LF antenna to the door hardware module (3).
5. Remove the LF antenna.

INSTALLATION

1. Position the LF antenna to the door for installation.

   Courtesy of CHRYSLER GROUP, LLC

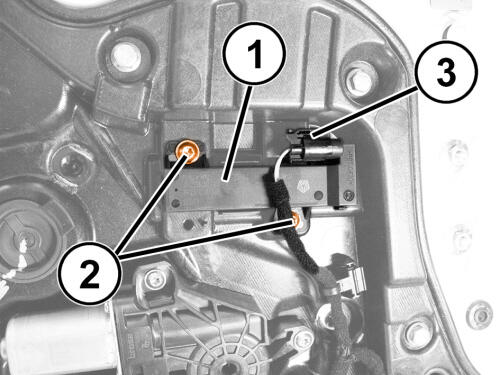

2. Position the LF antenna (1) on the door hardware module. Install and securely tighten the screws (2).
3. Connect the wiring harness connector (3) to the LF antenna.
4. Install the door trim panel.
5. Connect the negative battery cable.
