Removal And Installation: Interior

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the kick sill plate. Refer to PANEL, COWL TRIM, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

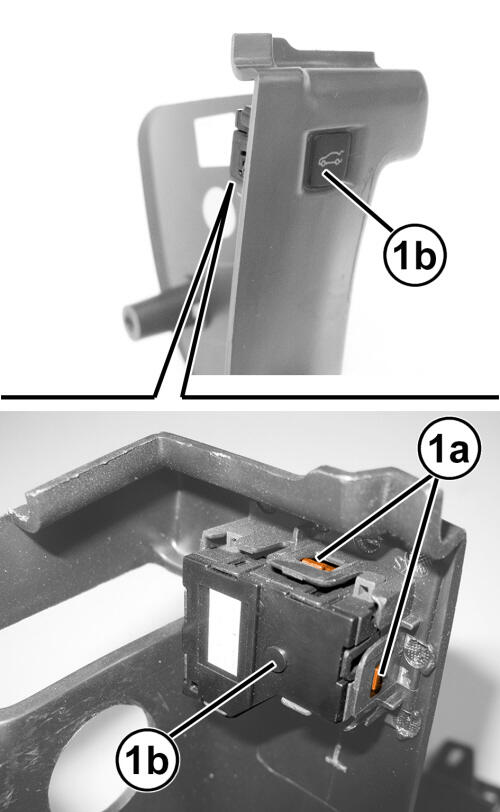

3. Release the switch retainers (1a).
4. Remove the switch (1b) from the panel.

INSTALLATION

1. Install the switch to the panel.

   Courtesy of CHRYSLER GROUP, LLC

2. Secure the switch to the retainers.
3. Install the kick sill plate. Refer to PANEL, COWL TRIM, REMOVAL AND INSTALLATION .
4. Connect the negative battery cable.
