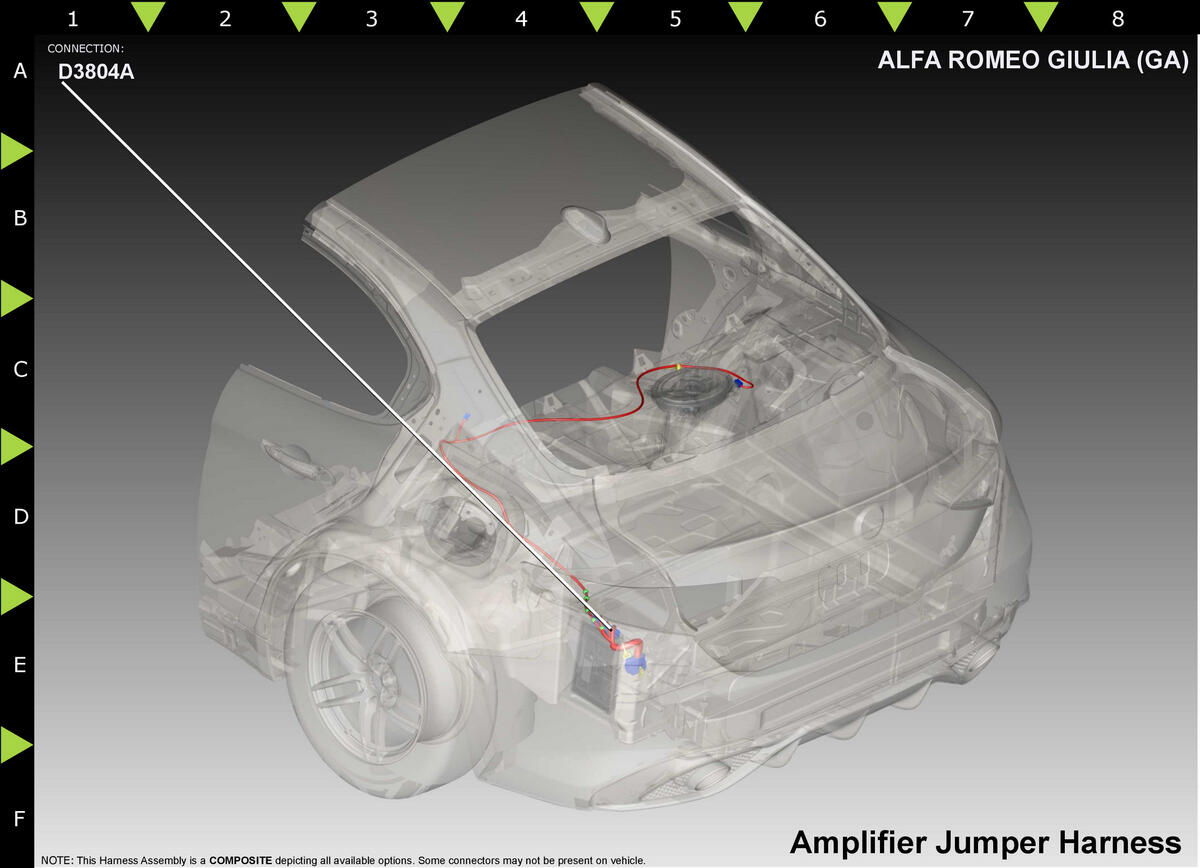

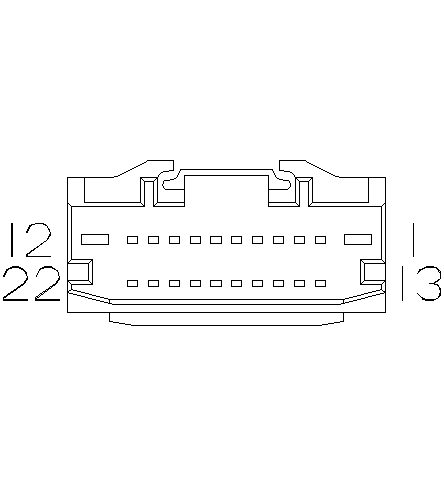

Amplifier-Radio C1 (Premium 2) Connector End View (D3804A)
Harness-Family: Amplifier_Jumper
Color: GRAY
Gender: FEMALE
Part Number: 1438761-6
Part Description: Not Available
Connector No: D3804A
Option: PREMIUM 2
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | Z341 | BK | 2.5 | GROUND | PREMIUM 2 | ||
| 4 | X209 | DB/RD | 0.75 | LEFT FRONT SPEAKER (+) | PREMIUM 2 | ||
| 5 | X208 | VT | 0.75 | RIGHT FRONT SPEAKER (+) | PREMIUM 2 | ||
| 6 | X208 | VT/OG | 0.75 | RIGHT FRONT SPEAKER (+) | PREMIUM 2 | ||
| 7 | X208 | VT | 0.75 | RIGHT FRONT SPEAKER (+) | PREMIUM 2 | ||
| 8 | X200 | DB/RD | 0.75 | AMPLIFIED CENTER I/P SPEAKER (+) | PREMIUM 2 | ||
| 9 | X300 | VT | 0.75 | AMPLIFIED SUBWOOFER 1 (+) | PREMIUM 2 | ||
| 10 | X209 | YE | 0.75 | LEFT FRONT SPEAKER (+) | PREMIUM 2 | ||
| 11 | X209 | YE | 0.75 | LEFT FRONT SPEAKER (+) | PREMIUM 2 | ||
| 12 | A901 | RD/BK | 2.5 | FUSED B(+) | PREMIUM 2 | ||
| 15 | X299 | DB/BK | 0.75 | LEFT FRONT SPEAKER (-) | PREMIUM 2 | ||
| 16 | X298 | VT/OG | 0.75 | RIGHT FRONT SPEAKER (-) | PREMIUM 2 | ||
| 17 | X298 | VT | 0.75 | RIGHT FRONT SPEAKER (-) | PREMIUM 2 | ||
| 18 | X298 | VT/OG | 0.75 | RIGHT FRONT SPEAKER (-) | PREMIUM 2 | ||
| 19 | X290 | DB/BK | 0.75 | AMPLIFIED CENTER I/P SPEAKER (-) | PREMIUM 2 | ||
| 20 | X390 | VT/BK | 0.75 | AMPLIFIED SUBWOOFER 1 (-) | PREMIUM 2 | ||
| 21 | X299 | YE/BK | 0.75 | LEFT FRONT SPEAKER (-) | PREMIUM 2 | ||
| 22 | X299 | YE/BK | 0.75 | LEFT FRONT SPEAKER (-) | PREMIUM 2 | ||
|
|||||||
