Antenna-BLUETOOTH/WIFI (Standard) Connector End View (D3887A)

Harness-Family: IP

Color: ORANGE

Gender: MALE

Part Number: 1/13084/94

Part Description: Not Available

Connector No: D3887A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

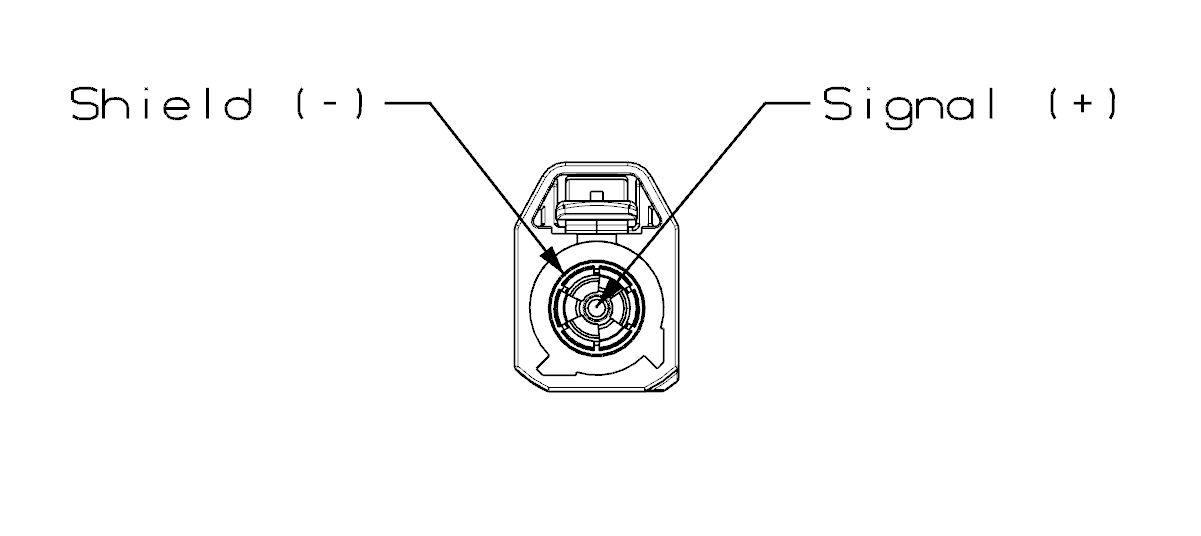

Fig 1: Antenna-Bluetooth/wifi Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Antenna-Bluetooth/wifi Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

J200

0.81

COAX BLUETOOTH SIG

N/A

⁽¹⁾	Pins not listed are not used for this connector
