Assembly-EGR Valve (2.0L) Connector End View (D28)

Harness-Family: Engine_20L

Color: BLACK

Gender: FEMALE

Part Number: 1-2272975-1

Part Description: Not Available

Connector No: D28

Option: 2.0L

Repair Kit Part Number: Not Available

Cavity Count: null

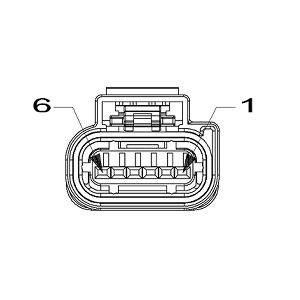

Fig 1: Assembly-Egr Valve Connector End View (2.0L)

Courtesy of CHRYSLER

Fig 2: Assembly-Egr Valve Component Location (2.0L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K685

BN/RD

0.75

EGR CONTROL 2

2.0L

K682

0.75

EGR CONTROL 1

2.0L

K916

BN/OG

0.35

SENSOR GROUND

2.0L

F853

BN/VT

0.35

5 VOLT SUPPLY

2.0L

K683

BU/GY

0.35

EGR SIGNAL

2.0L

⁽¹⁾	Pins not listed are not used for this connector
